  11. Straight Blade Receptacle, 5-20R, 20 A, 125V AC, 2 Pole, 3 Wire, Flush Mount, Grounded

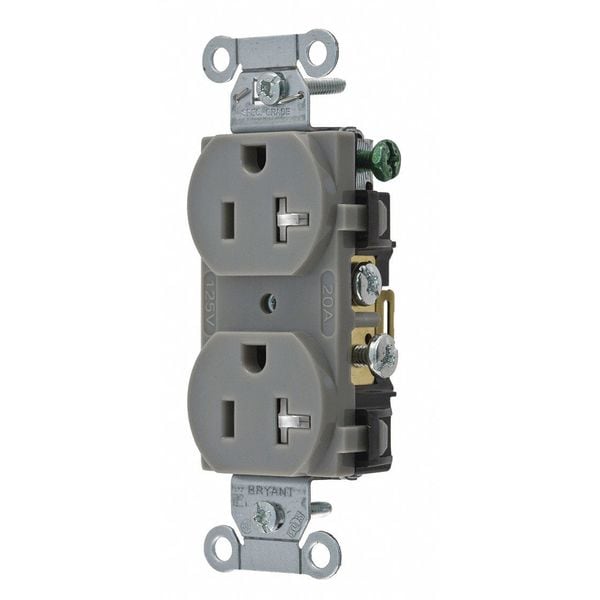

Bryant Straight Blade Receptacle, 5-20R, 20 A, 125V AC, 2 Pole, 3 Wire, Flush Mount, Grounded CRS20GRYTR - main

Straight Blade Receptacle, 5-20R, 20 A, 125V AC, 2 Pole, 3 Wire, Flush Mount, Grounded

  • Mfr # CRS20GRYTR

  • Zoro # G4818698

product price: $8.13
/ea

Key Features

Receptacle Type
Duplex
NEMA Receptacle Configuration
5-20R
Current Rating
20 A
Voltage Rating
125V AC
Phase
Single
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
CRS20GRYTR
Zoro #
G4818698
UPC #
00781786144040
Country of Origin
China

Dimensions

Maximum Wire Size
12 AWG
Minimum Wire Size
14 AWG
Display Size
Standard Sized Product
Wire Size
#14 AWG to #12 AWG

Details

Item
Straight Blade Receptacle
Receptacle Type
Duplex
NEMA Receptacle Configuration
5-20R
Current Rating
20 A
Voltage Rating
125V AC
Phase
Single
Number of Poles
2
Number of Wires
3
Wire Connection Type
Screw Terminals
Wiring Method
Side
Grounding
Grounded
Housing Color
Gray
Mount Type
Flush
Standards
CSA Certified, Federal Specification, UL Listed
Resistance Properties
Corrosion Resistant, Tamper Resistant
Flange Type
Non-Flanged
Mounting Type
Flush
Mounting Type - Plugs and Receptacles
Flush
Wiring Method - Plugs and Receptacles
Side
Application Environment
Commercial
Outlet Type - Plugs and Receptacles
Standard Duplex
Tamper Resistant
Yes
Outlet Type
Duplex
Number of Gangs
1
Material
Nylon
Power Indicator
No
Sub-Category
Duplex Receptacles
Surge Suppression
No
Weather Resistant - Plugs and Receptacles
No
Corrosion Resistant
Yes
Voltage
125VAC
Weather Resistant
No
NEMA Receptacle Configuration - Plugs and Receptacles
5-20R
Special Features
Corrosion resistant
HP
1 hp
Market
Commercial
Cover Type
No Cover
AFCI
No
Surge Protection
No
Includes Mounting Hardware
Yes
Horsepower Rating
1 hp
Connection Orientation
Straight
Includes
Mounting Hardware
Polarized
Yes
Housing Material
Composite
GFCI
No
Grade
Federal Specification
For Location
Indoor
Style
Smooth Face
Application
Commercial Specification Grade
Series
Commercial
Environmental Conditions
Indoor Dry Unless Protected By Additional Means
Material - Mounting Hardware
Screw Mounting
Wattage
2500
Nema Rating
5-20R

Description

Receptacle, Connection Orientation Straight, Cover Type No Cover, Current Rating 20 A, GFCI No, Grounding Grounded, Housing Color Gray, Housing Material Composite, Mount Type Flush, NEMA Receptacle Configuration 5-20R, Number of Gangs 1, Number of Poles 2, Number of Wires 3, Phase Single, Polarized Yes, Receptacle Type Duplex, Resistance Properties Tamper Resistant, Standards CSA Certified, Federal Specification, UL Listed, Voltage Rating 125V AC, Wire Connection Type Screw Terminals
