Shop HUBBELL WIRING DEVICE-KELLEMS

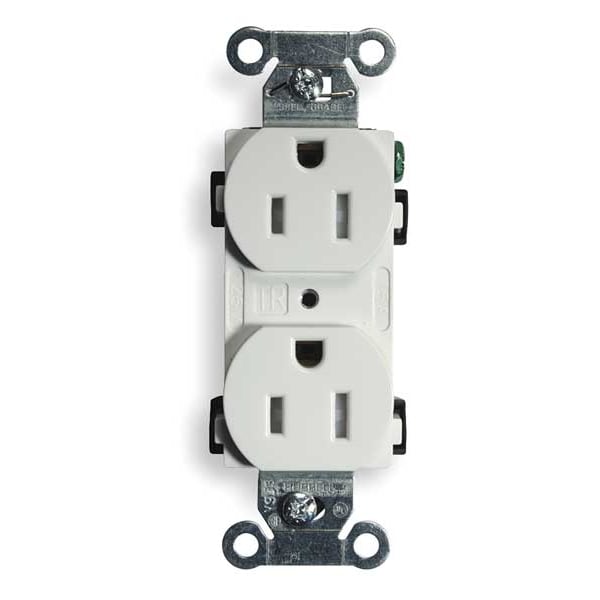

Duplex Straight Blade Receptacle, 5-15R, 15 A, 125V AC, 2 Pole, 3 Wire, Flush Mount, Grounded

  • Mfr # BR15WHITR

  • Zoro # G0884283

product price:
$
8.55
/ea

Key Features

Receptacle Type
Duplex
NEMA Receptacle Configuration
5-15R
Current Rating
15 A
Voltage Rating
125V AC
Phase
Single
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Details

MFR #
BR15WHITR
Zoro #
G0884283
UPC #
783585144092
Country of Origin
China
Item
Duplex Straight Blade Receptacle
Receptacle Type
Duplex
NEMA Receptacle Configuration
5-15R
Current Rating
15 A
Voltage Rating
125V AC
Phase
Single
Number of Poles
2
Number of Wires
3
Wire Connection Type
Screw Terminals
Wiring Method
Back, Side
Grounding
Grounded
Housing Color
White
Mount Type
Flush
Standards
CSA Certified C22.2, NEMA WD-6, UL 498 File E2186
Resistance Properties
Tamper Resistant
Flange Type
Non-Flanged
Wiring Method - Plugs and Receptacles
Back and Side
Corrosion Resistant
No
Voltage
125VAC
Mounting Type
Flush
Tamper Resistant
Yes
Sub-Category
Duplex Receptacles
Weather Resistant
No
Weather Resistant - Plugs and Receptacles
No
Power Indicator
No
NEMA Receptacle Configuration - Plugs and Receptacles
5-15R
Application Environment
Commercial
Mounting Type - Plugs and Receptacles
Flush
HP
1/2 hp
Color
White
Outlet Type
Duplex
Number of Gangs
1
Material
Nylon
Outlet Type - Plugs and Receptacles
Standard Duplex
Surge Suppression
No
NEMA Configuration
5-15
Series
Commercial Specification Grade
Number Of Wires
3-Wire
Dielectric Strength
Withstands 2,000V minimum
Carton Quantity
10
Application
Commercial Specification Grade
Amperage
15 A
Type
Tamper-Resistant
Brand
Hubbell Wiring Device-Kellems
Maximum Horsepower
0.5
Nema Rating
5-15R
Mounting Hardware Material
Screw Mounting
Operating Temperature
Maximum continuous 75°C and minimum -40°C without Impact
Connectivity
Back and Side Wired
Environmental Rating
Indoor Dry Unless Protected By Additional Means
Wattage
1875 W
Style
Smooth Face
Housing Material
Nylon
UL 94 Flammability Rating
V-2
Market
Commercial, Industrial
Shrouded
No
NEMA Enclosure Rating
1
For Location
Indoor
Maximum Operating Temperature
167 Degrees F
GFCI
No
AFCI
No
Includes
Grounding Staple, Mounting Hardware, Wall Plate or Weatherproof Cover
Contact Material
Brass
Grade
Federal Specification
Polarized
Yes
Surge Protection
No
Cover Type
No Cover
Connection Orientation
Straight
Minimum Operating Temperature
-40 Degrees F
Includes Mounting Hardware
Yes
Horsepower Rating
1/2 hp
Poles and Wires
2 Pole, 3-Wire Grounding
Horsepower
0.5
Receptacle Grade
Specification Grade Commercial Series, Tamper Resistant
Flammability
UL 94 V2.
Device Color
White
Rating
15A, 125V
Other Available Colors
Brown, Ivory, White, Office White, Almond, Light Almond, Gray, Black
Face Shape
Traditional
Terminal Identification
Terminals identified in accordance with UL 498 and CSA
Terminal Accommodation
#14-#10 AWG copper stranded or solid conductor only
Receptacle Style
Duplex
Current Interrupting
Certified for current interrupting at full rated current
Certification
UL Listed to UL498 File E2186, Guide RTRT Fed Spec WC596G, Meets WD-1 Heavy Duty and WD-6 requirements, Certified to CSA, C22.2, No. 42 file 285.
Dielectric Voltage
Withstands 2,000V minimum
Mounting Screw Material
Steel-Zinc Plated
Mounting Strap Material
.040" (1) Steel (Galvanized)
Temperature Rise
Max 30°C temperature rise at full rated current after 50 cycles of overload at 150% of rated current
Operating Temperatures
Maximum continuous 75°C; minimum -40°C (w/o impact)
Auto Ground Clip Material
Stainless Steel
Power Contacts Material
.030" (.8) Brass
Standard
NEMA
Top Material
Nylon
Base Material
Nylon

Description

The HUBBELL 15A Duplex Receptacle 125VAC 5-15R WH is a [Omit or replace with 'commercial grade' if verified by supplier] duplex outlet intended for indoor use. It features a smooth nylon face and wrap-around galvanized steel straps for durability. This receptacle supports both back and side wiring methods, accommodating #14 to #10 AWG copper conductors, and is rated for 15 amps at 125 volts AC with a NEMA 5-15R configuration.


Key Features of the HUBBELL - 15A Duplex Receptacle:

  • Tamper-Resistant: Built-in shutters are intended to reduce the risk of foreign object insertion.

  • Wiring Options: Supports both back and side wire connections using screw terminals.

  • Material Construction: Nylon housing with brass triple wipe contacts; galvanized steel mounting strap.

  • Electrical Ratings: Rated for 15 A, 125 V AC; maximum wattage of 1875 W; suitable for single-phase applications.

  • Grounding: Grounded design complies with WC596G specifications.

  • NEMA Configuration: Standard NEMA 5-15R duplex straight blade layout.

  • Certification & Standards: UL Listed (UL498), CSA Certified C22.2 No.42, NEMA WD-6 compliant.

  • Operating Temperature Range: -40°C to +75°C (without impact); withstands dielectric voltage up to 2,000V minimum.
