  11. Straight Blade Receptacle, 5-20R, 20 A, 125V AC, 2 Pole, 3 Wire, Flush Mount, Grounded

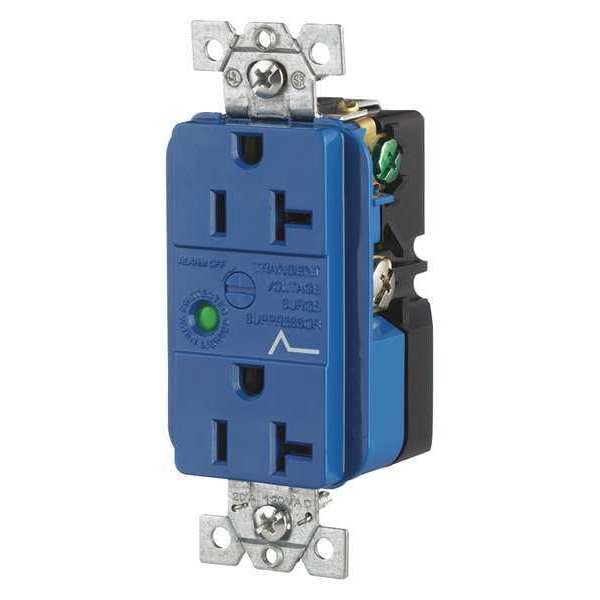

Bryant Straight Blade Receptacle, 5-20R, 20 A, 125V AC, 2 Pole, 3 Wire, Flush Mount, Grounded SP53A - main

Straight Blade Receptacle, 5-20R, 20 A, 125V AC, 2 Pole, 3 Wire, Flush Mount, Grounded

  • Mfr # SP53A

  • Zoro # G4438071

product price: $55.69
/ea

Key Features

Receptacle Type
Duplex
NEMA Receptacle Configuration
5-20R
Current Rating
20 A
Voltage Rating
125V AC
Phase
Single
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
SP53A
Zoro #
G4438071
UPC #
781786139053
Country of Origin
China

Dimensions

Overall Depth
4 in
Face Plate Height
2.8 in
Face Plate Width
1.7 in
Display Size
Standard

Details

Item
Straight Blade Receptacle
Receptacle Type
Duplex
NEMA Receptacle Configuration
5-20R
Current Rating
20 A
Voltage Rating
125V AC
Phase
Single
Number of Poles
2
Number of Wires
3
Wire Connection Type
Screw Terminals
Wiring Method
Back, Side
Grounding
Grounded
Housing Color
Blue
Mount Type
Flush
Standards
CSA Certified, UL Listed
Resistance Properties
Impact Resistant
Flange Type
Non-Flanged
Mounting Type
Flush
Surge Suppression
Yes
Sub-Category
Decorator Receptacles
Application Environment
Commercial
Power Indicator
No
Mounting Type - Plugs and Receptacles
Flush
Voltage
125VAC
Outlet Type - Plugs and Receptacles
Decorator Duplex
Outlet Type
Decorator
Special Features
Audible Alarm
Weather Resistant - Plugs and Receptacles
No
Material
Nylon
NEMA Receptacle Configuration - Plugs and Receptacles
5-20R
Wiring Method - Plugs and Receptacles
Back and Side
Corrosion Resistant
No
Number of Gangs
1
HP
1 hp
Weather Resistant
No
Tamper Resistant
No
Grade
General Use
Market
Commercial, Industrial
Connection Orientation
Straight
Includes Mounting Hardware
Yes
Polarized
Yes
Includes
Mounting Hardware
Minimum Operating Temperature
32 Degrees F
Horsepower Rating
1 hp
Surge Protection
Yes
GFCI
No
AFCI
No
Maximum Operating Temperature
140 Degrees F
For Location
Indoor
Housing Material
Composite
Cover Type
No Cover
Material - Mounting Hardware
Mounting Screws
Series
Specification Grade
Indicator(s) Type
LED and Audible Alarm
Operating Temperature
32 Deg F to 140 Deg F (0 Deg C to 60 Deg C)
Application
Duplex with Light and Alarm
Response Time
5
Nema Rating
5-20R
Environmental Conditions
Indoor Dry Unless Protected By Additional Means
Style
Surge Protection Only
Outlet
Straight Blade
Frequency Rating
60 Hz

Description

Receptacle, Connection Orientation Straight, Cover Type No Cover, Current Rating 20 A, GFCI No, Grounding Grounded, Housing Color Blue, Housing Material Composite, Mount Type Flush, NEMA Receptacle Configuration 5-20R, Number of Gangs 1, Number of Poles 2, Number of Wires 3, Phase Single, Polarized Yes, Receptacle Type Duplex, Resistance Properties Impact Resistant, Standards CSA Certified, UL Listed, Voltage Rating 125V AC, Wire Connection Type Screw Terminals, Wiring Method Back, Side, AFCI No
