  11. Straight Blade Receptacle, 5-20R, 20 A, 125V AC, 2 Pole, 3 Wire, Flush Mount, Grounded

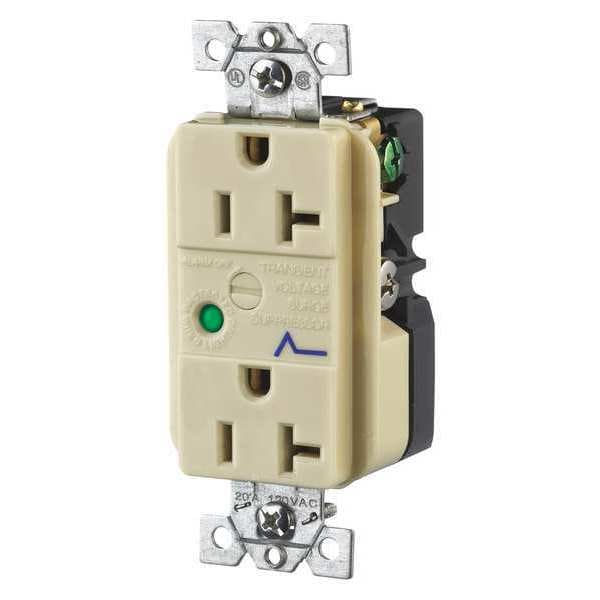

Bryant Straight Blade Receptacle, 5-20R, 20 A, 125V AC, 2 Pole, 3 Wire, Flush Mount, Grounded SP53IA - main

Straight Blade Receptacle, 5-20R, 20 A, 125V AC, 2 Pole, 3 Wire, Flush Mount, Grounded

  • Mfr # SP53IA

  • Zoro # G4844981

product price: $54.89
/ea

Key Features

Receptacle Type
Duplex
NEMA Receptacle Configuration
5-20R
Current Rating
20 A
Voltage Rating
125V AC
Phase
Single
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
SP53IA
Zoro #
G4844981
UPC #
781786139060
Country of Origin
China

Dimensions

Face Plate Height
2.8 in
Overall Depth
4 in
Face Plate Width
1.7 in

Details

Item
Straight Blade Receptacle
Receptacle Type
Duplex
NEMA Receptacle Configuration
5-20R
Current Rating
20 A
Voltage Rating
125V AC
Phase
Single
Number of Poles
2
Number of Wires
3
Wire Connection Type
Screw Terminals
Wiring Method
Back, Side
Grounding
Grounded
Housing Color
Ivory
Mount Type
Flush
Standards
CSA Certified, UL Listed
Resistance Properties
Impact Resistant
Flange Type
Non-Flanged
Sub-Category
Decorator Receptacles
HP
1 hp
NEMA Receptacle Configuration - Plugs and Receptacles
5-20R
Weather Resistant - Plugs and Receptacles
No
Voltage
125VAC
Outlet Type - Plugs and Receptacles
Decorator Duplex
Mounting Type - Plugs and Receptacles
Flush
Mounting Type
Flush
Material
Nylon
Wiring Method - Plugs and Receptacles
Back and Side
Surge Suppression
Yes
Number of Gangs
1
Corrosion Resistant
No
Weather Resistant
No
Power Indicator
No
Special Features
Audible Alarm
Application Environment
Commercial
Outlet Type
Decorator
Tamper Resistant
No
AFCI
No
Market
Commercial
Maximum Operating Temperature
140 Degrees F
Connection Orientation
Straight
Includes
Mounting Hardware
Surge Protection
Yes
Horsepower Rating
1 hp
GFCI
No
Cover Type
No Cover
Grade
General Use
Includes Mounting Hardware
Yes
Polarized
Yes
For Location
Indoor
Housing Material
Composite
Minimum Operating Temperature
32 Degrees F

Description

Receptacle, Connection Orientation Straight, Cover Type No Cover, Current Rating 20 A, GFCI No, Grounding Grounded, Housing Color Ivory, Housing Material Composite, Mount Type Flush, NEMA Receptacle Configuration 5-20R, Number of Gangs 1, Number of Poles 2, Number of Wires 3, Phase Single, Polarized Yes, Receptacle Type Duplex, Resistance Properties Impact Resistant, Standards CSA Certified, UL Listed, Voltage Rating 125V AC, Wire Connection Type Screw Terminals, Wiring Method Back, Side
