  6. Straight Blade Receptacle, 5-20R, 20 A, 125V AC, 2 Pole, 3 Wire, Flush Mount, Isolated Ground

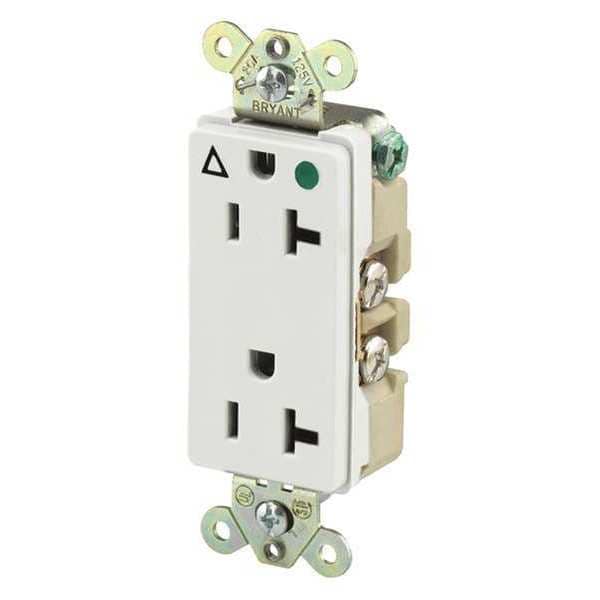

Bryant Straight Blade Receptacle, 5-20R, 20 A, 125V AC, 2 Pole, 3 Wire, Flush Mount, Isolated Ground 9300IGW - main

Straight Blade Receptacle, 5-20R, 20 A, 125V AC, 2 Pole, 3 Wire, Flush Mount, Isolated Ground

  • Mfr # 9300IGW

  • Zoro # G4819346

product price:  $36.56
/ea

Key Features

Receptacle Type
Duplex
NEMA Receptacle Configuration
5-20R
Current Rating
20 A
Voltage Rating
125V AC
Phase
Single
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Unlock tax-exempt savings
Add Tax Exemption

Specifications

Product Information

MFR #
9300IGW
Zoro #
G4819346
UPC #
781786741782
Country of Origin
United States

Dimensions

Minimum Wire Size
14 AWG
Face Plate Width
1.4 in
Face Plate Height
2.8 in
Maximum Wire Size
12 AWG
Overall Depth
1 in
Mount Hole Center-to-Center Height
3.3 in
Display Size
Standard Sized Product
Wire Size
#14 AWG to #12 AWG

Details

Item
Straight Blade Receptacle
Receptacle Type
Duplex
NEMA Receptacle Configuration
5-20R
Current Rating
20 A
Voltage Rating
125V AC
Phase
Single
Number of Poles
2
Number of Wires
3
Wire Connection Type
Screw Terminals
Wiring Method
Back, Side
Grounding
Isolated Ground
Housing Color
White
Mount Type
Flush
Standards
CSA Certified, UL Listed
Resistance Properties
Tamper Resistant
Flange Type
Non-Flanged
Application Environment
Hospital Grade
Material
Nylon
Wiring Method - Plugs and Receptacles
Back and Side
HP
1 hp
Power Indicator
No
NEMA Receptacle Configuration - Plugs and Receptacles
5-20R
Voltage
125VAC
Sub-Category
Decorator Receptacles
Weather Resistant
No
Tamper Resistant
No
Mounting Type - Plugs and Receptacles
Flush
Outlet Type
Decorator
Outlet Type - Plugs and Receptacles
Decorator Duplex
Surge Suppression
No
Number of Gangs
1
Mounting Type
Flush
Weather Resistant - Plugs and Receptacles
No
Special Features
Isolated Ground
Corrosion Resistant
No
Includes
Mounting Hardware
AFCI
No
Surge Protection
No
Housing Material
Composite
Includes Mounting Hardware
Yes
Polarized
Yes
Cover Type
No Cover
Connection Orientation
Straight
For Location
Indoor
Grade
Hospital Grade
GFCI
No
Horsepower Rating
1 hp
Application
Hospital Grade
Environmental Conditions
Indoor Dry Unless Protected By Additional Means
Style
Decorator
Wattage
2500
Material - Mounting Hardware
Screw Mounting
Series
Straight Blade
Nema Rating
5-20R

Description

Receptacle, Connection Orientation Straight, Cover Type No Cover, Current Rating 20 A, GFCI No, Grounding Grounded, Isolated Ground, Hazardous Location Specification Not Applicable, Housing Color White, Housing Material Composite, Mount Type Flush, NEMA Enclosure Rating Not Applicable, NEMA Receptacle Configuration 5-20R, Number of Gangs 1, Number of Poles 2, Number of Wires 3, Phase Single, Polarized Yes, Receptacle Type Decorator Duplex, Resistance Properties Tamper Resistant
