  11. Straight Blade Receptacle, 5-20R, 20 A, 125V AC, 2 Pole, 3 Wire, Flush Mount, Isolated Ground

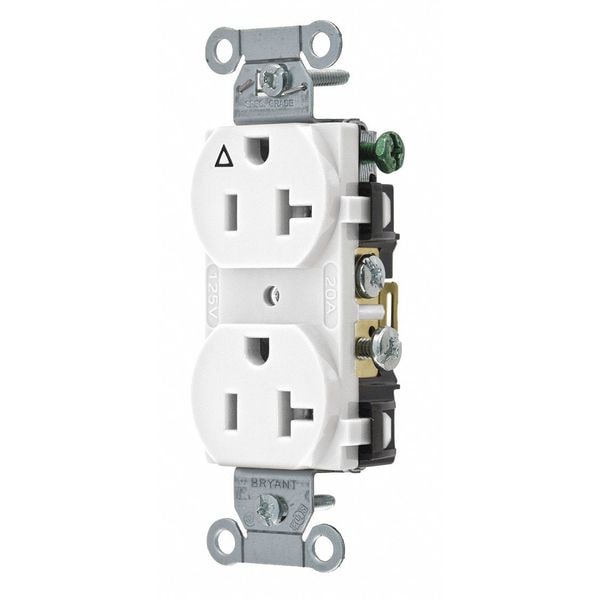

Bryant Straight Blade Receptacle, 5-20R, 20 A, 125V AC, 2 Pole, 3 Wire, Flush Mount, Isolated Ground CR20IGW - main

Straight Blade Receptacle, 5-20R, 20 A, 125V AC, 2 Pole, 3 Wire, Flush Mount, Isolated Ground

  • Mfr # CR20IGW

  • Zoro # G4818731

product price: $5.65
/ea

Key Features

Receptacle Type
Duplex
NEMA Receptacle Configuration
5-20R
Current Rating
20 A
Voltage Rating
125V AC
Phase
Single
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
CR20IGW
Zoro #
G4818731
UPC #
00078178673470
Country of Origin
China

Dimensions

Height
0.92 in
Width
1.38 in
Overall Depth
0.9 in
Minimum Wire Size
14 AWG
Mount Hole Center-to-Center Height
4.1 in
Face Plate Height
2.7 in
Maximum Wire Size
12 AWG
Wire Size
#14 AWG to #12 AWG
Display Size
Standard Sized Product
Length
3.28 in

Details

Item
Straight Blade Receptacle
Receptacle Type
Duplex
NEMA Receptacle Configuration
5-20R
Current Rating
20 A
Voltage Rating
125V AC
Phase
Single
Number of Poles
2
Number of Wires
3
Wire Connection Type
Screw Terminals
Wiring Method
Back, Side
Grounding
Isolated Ground
Housing Color
White
Mount Type
Flush
IP Rating
Not Rated
Standards
CSA Certified, UL Listed
Resistance Properties
Tamper Resistant
Flange Type
Non-Flanged
Mounting Type - Plugs and Receptacles
Flush
Mounting Type
Flush
Number of Gangs
1
NEMA Receptacle Configuration - Plugs and Receptacles
5-20R
Outlet Type - Plugs and Receptacles
Standard Duplex
Weather Resistant
No
Weather Resistant - Plugs and Receptacles
No
Corrosion Resistant
No
Sub-Category
Duplex Receptacles
Power Indicator
No
Application Environment
Commercial
Wiring Method - Plugs and Receptacles
Side
Outlet Type
Duplex
Voltage
125VAC
Material
Nylon
HP
1/2 hp
Surge Suppression
No
Tamper Resistant
No
Special Features
Isolated Ground
GFCI
No
Surge Protection
No
Includes
Mounting Hardware
Market
Commercial
Horsepower Rating
1/2 hp
Connection Orientation
Straight
AFCI
No
Housing Material
Composite
Contact Material
Brass
Includes Mounting Hardware
Yes
Polarized
Yes
Cover Type
No Cover
Grade
Federal Specification
For Location
Indoor
Wattage
1875
Environmental Conditions
Indoor Dry Unless Protected By Additional Means
Application
Commercial Specification Grade
Style
Smooth Face
Nema Rating
5-20R
Series
Straight Blade
Material - Mounting Hardware
Screw Mounting

Description

Receptacle, Connection Orientation Straight, Cover Type No Cover, Current Rating 15 A, GFCI No, Grounding Grounded, Isolated Ground, Housing Color White, Housing Material Composite, Mount Type Flush, NEMA Receptacle Configuration 5-20R, Number of Gangs 1, Number of Poles 2, Number of Wires 3, Phase Single, Polarized Yes, Receptacle Type Duplex, Standards CSA Certified, Federal Specification, UL Listed, Voltage Rating 125V AC, Wire Connection Type Screw Terminals, Wiring Method Back, Side
