Shop LEVITON

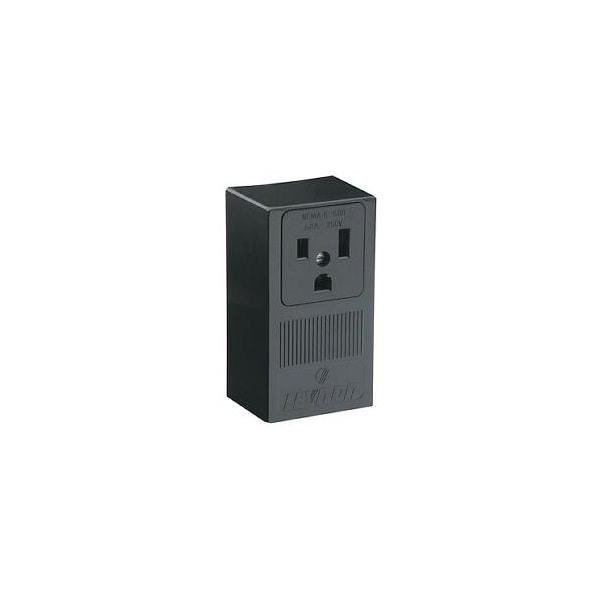

Straight Blade Receptacle, 6-50R, 50 A, 250V AC, 2 Pole, 3 Wire, Surface Mount, Isolated Ground

  • Mfr # 5378-P00

  • Zoro # G504393230

product price:  $14.99
/ea

Key Features

Receptacle Type
Single
NEMA Receptacle Configuration
6-50R
Voltage Rating
250V AC
Phase
Single
Number of Poles
2
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
5378-P00
Zoro #
G504393230
UPC #
07847798235
Country of Origin
Mexico

Dimensions

Minimum Wire Size
8 AWG
Maximum Wire Size
4 AWG
Mount Hole Center-to-Center Height
3.3 in

Details

Item
Straight Blade Receptacle
Receptacle Type
Single
NEMA Receptacle Configuration
6-50R
Current Rating
50 A
Voltage Rating
250V AC
Phase
Single
Number of Poles
2
Number of Wires
3
Wire Connection Type
Screw Terminals
Wiring Method
Side
Grounding
Isolated Ground
Housing Color
Black
Mount Type
Surface
Standards
ANSI C73, CSA C22.2 No. 42 File E152105, NEMA WD-6, UL 498 File E13399
NEMA Receptacle Configuration - Plugs and Receptacles
6-50R
Market
Commercial, Industrial
Cover Type
No Cover
Polarized
Yes
Number of Outlets
1
Horsepower Rating
3 hp
UL 94 Flammability Rating
V-2
Includes Mounting Hardware
Yes
Grade
Federal Specification
Housing Material
Thermoplastic
Minimum Operating Temperature
-40 Degrees F
GFCI
No
Connection Orientation
Straight
Maximum Operating Temperature
140 Degrees F
NEMA Enclosure Rating
Not Rated
Shrouded
No
Number of Wall Plates Included
0
Flange Type
Non-Flanged
Surge Protection
No
Number of Gangs
1
AFCI
No
IP Rating
Not Rated

Description

Receptacle, Connection Orientation Straight, Cover Type No Cover, Current Rating 50 A, GFCI No, Grounding Grounded, Isolated Ground, Housing Color Black, Housing Material Thermoplastic, Mount Type Surface, NEMA Receptacle Configuration 6-50R, Number of Poles 2, Number of Wires 3, Phase Single, Polarized Yes, Receptacle Type Single, Standards ANSI C73, CSA C22.2 No. 42 File E152105, NEMA WD-6, UL 498 File E13399, Voltage Rating 250V AC, Wire Connection Type Screw Terminals, Wiring Method Side
