Shop BRYANT

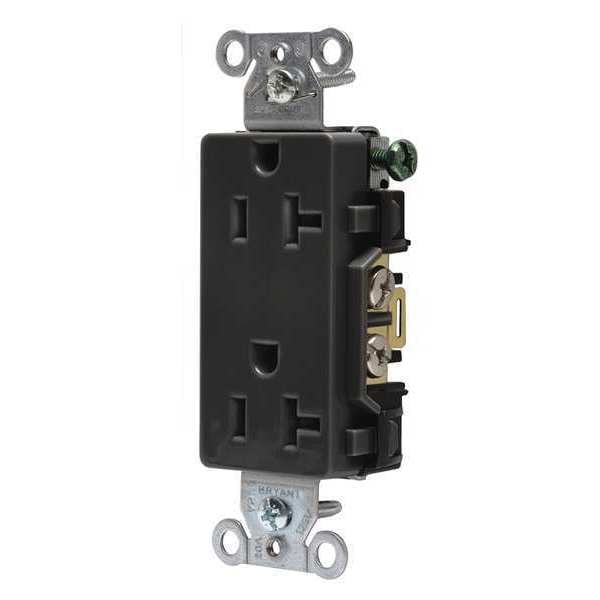

Straight Blade Receptacle, 5-20R, 20 A, 125V AC, 2 Pole, 3 Wire, Flush Mount, Self-Grounded

  • Mfr # DRS20BLK

  • Zoro # G4818637

product price:  $7.09
/ea

Key Features

Receptacle Type
Duplex
NEMA Receptacle Configuration
5-20R
Current Rating
20 A
Voltage Rating
125V AC
Phase
Single
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
DRS20BLK
Zoro #
G4818637
UPC #
781786410589
Country of Origin
China

Dimensions

Height
1.07 in
Width
1.38 in
Overall Depth
1.1 in
Maximum Wire Size
12 AWG
Face Plate Height
2.7 in
Minimum Wire Size
14 AWG
Mount Hole Center-to-Center Height
4.1 in
Display Size
Standard Sized Product
Wire Size
#14 AWG to #12 AWG
Length
3.28 in

Details

Item
Straight Blade Receptacle
Receptacle Type
Duplex
NEMA Receptacle Configuration
5-20R
Current Rating
20 A
Voltage Rating
125V AC
Phase
Single
Number of Poles
2
Number of Wires
3
Wire Connection Type
Screw Terminals
Wiring Method
Back, Side
Grounding
Self-Grounded
Housing Color
Black
Mount Type
Flush
Standards
CSA Certified, Federal Specification, UL Listed
Resistance Properties
Corrosion Resistant, Impact Resistant
Flange Type
Non-Flanged
Mounting Type - Plugs and Receptacles
Flush
Application Environment
Commercial
Outlet Type
Decorator
Surge Suppression
No
Corrosion Resistant
Yes
Power Indicator
No
Sub-Category
Decorator Receptacles
Weather Resistant
No
Tamper Resistant
No
Number of Gangs
1
HP
1 hp
Voltage
125VAC
Weather Resistant - Plugs and Receptacles
No
Special Features
Corrosion resistant
Wiring Method - Plugs and Receptacles
Back and Side
Material
Nylon
Mounting Type
Flush
NEMA Receptacle Configuration - Plugs and Receptacles
5-20R
Outlet Type - Plugs and Receptacles
Decorator Duplex
Polarized
Yes
Connection Orientation
Straight
AFCI
No
Cover Type
No Cover
Horsepower Rating
1 hp
Housing Material
Composite
Contact Material
Brass
For Location
Indoor
Grade
Federal Specification
Market
Commercial, Industrial
Surge Protection
No
GFCI
No
Includes
Mounting Hardware
Includes Mounting Hardware
Yes
Nema Rating
5-20R
Application
Commercial Grade
Environmental Conditions
Indoor Dry Unless Protected By Additional Means
Material - Mounting Hardware
Screw Mounting
Wattage
2500
Style
Decorator
Number of Outlets
2
Number of Wall Plates Included
0
IP Rating
IP20

Description

Receptacle, Connection Orientation Straight, Cover Type No Cover, Current Rating 20 A, GFCI No, Grounding Grounded, Housing Color Black, Housing Material Composite, Mount Type Flush, NEMA Receptacle Configuration 5-20R, Number of Gangs 1, Number of Poles 2, Number of Wires 3, Phase Single, Polarized Yes, Receptacle Type Decorator Duplex, Resistance Properties Impact Resistant, Standards CSA Certified, Federal Specification, UL Listed, Voltage Rating 125V AC, Wire Connection Type Screw Terminals
