  11. Straight Blade Receptacle, 5-20R, 20 A, 125V AC, 2 Pole, 3 Wire, Flush Mount, Self-Grounded

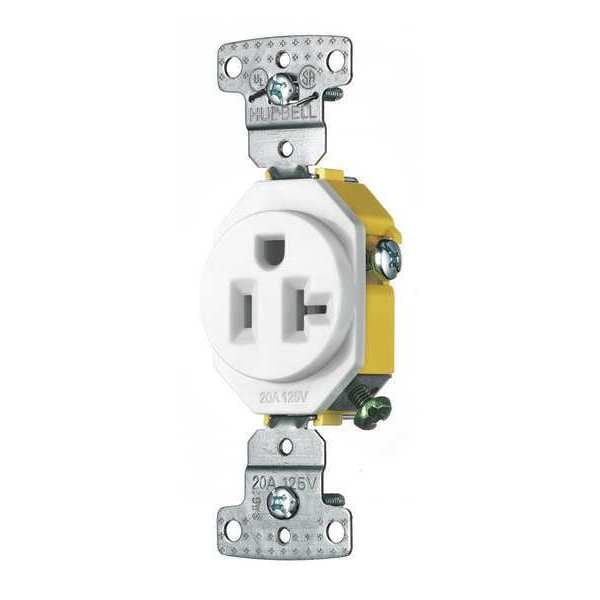

Bryant Straight Blade Receptacle, 5-20R, 20 A, 125V AC, 2 Pole, 3 Wire, Flush Mount, Self-Grounded RR201W - main

Straight Blade Receptacle, 5-20R, 20 A, 125V AC, 2 Pole, 3 Wire, Flush Mount, Self-Grounded

  • Mfr # RR201W

  • Zoro # G4845018

product price: $5.55
/ea

Key Features

Receptacle Type
Single
NEMA Receptacle Configuration
5-20R
Current Rating
20 A
Voltage Rating
125V AC
Phase
Single
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
RR201W
Zoro #
G4845018
UPC #
883778100277
Country of Origin
China

Dimensions

Minimum Wire Size
14 AWG
Overall Depth
1.4 in
Maximum Wire Size
12 AWG
Mount Hole Center-to-Center Height
3.3 in
Face Plate Height
0.9 in
Wire Size
#12 AWG to #10 AWG
Display Size
Standard Sized Product

Details

Item
Straight Blade Receptacle
Receptacle Type
Single
NEMA Receptacle Configuration
5-20R
Current Rating
20 A
Voltage Rating
125V AC
Phase
Single
Number of Poles
2
Number of Wires
3
Wire Connection Type
Screw Terminals
Wiring Method
Side
Grounding
Self-Grounded
Housing Color
White
Mount Type
Flush
IP Rating
IP20
Standards
CSA Certified, UL Listed
Resistance Properties
Corrosion Resistant, Tamper Resistant
Flange Type
Non-Flanged
Number of Gangs
1
Tamper Resistant
No
Material
Nylon
Special Features
Corrosion resistant
Weather Resistant - Plugs and Receptacles
No
Voltage
125VAC
Corrosion Resistant
Yes
Sub-Category
Single Receptacles
Weather Resistant
No
Wiring Method - Plugs and Receptacles
Side
Mounting Type - Plugs and Receptacles
Flush
Power Indicator
No
Surge Suppression
No
Outlet Type
Single
HP
1 hp
Mounting Type
Flush
Application Environment
General Purpose
Outlet Type - Plugs and Receptacles
Single
NEMA Receptacle Configuration - Plugs and Receptacles
5-20R
Grade
General Use
Cover Type
No Cover
Polarized
Yes
Includes
Mounting Hardware
Market
Residential
Connection Orientation
Straight
Surge Protection
No
GFCI
No
For Location
Indoor
AFCI
No
Housing Material
Thermoplastic
Horsepower Rating
1 hp
Includes Mounting Hardware
Yes
Nema Rating
5-20R
Performance
Environmental - Operating temperature - -20°C to 60°CMechanical - Terminal - Terminal screws accepts up to #12 AWG, Push wire designed for #14 AWG solid copper wire only
Material - Mounting Hardware
Screw Mounting
Application
Residential Receptacles
Environmental Conditions
Indoor Dry Unless Protected By Additional Means
Wattage
2500
Features
Smooth indented face appearance; Multiple-drive Slot/Phillips/Robertson head screws; Tough thermoplastic ultrasonically welded cover and base

Description

Receptacle, Connection Orientation Straight, Cover Type No Cover, Current Rating 20 A, GFCI No, Grounding Grounded, Housing Color White, Housing Material Thermoplastic, Mount Type Flush, NEMA Receptacle Configuration 5-20R, Number of Gangs 1, Number of Poles 2, Number of Wires 3, Phase Single, Polarized Yes, Receptacle Type Single, Resistance Properties Not Applicable, Standards CSA Certified, UL Listed, Voltage Rating 125V AC, Wire Connection Type Screw Terminals, Wiring Method Side, AFCI No
