  11. Straight Blade Receptacle, 6-15R, 15 A, 250V AC, 2 Pole, 3 Wire, Flush Mount, Grounded

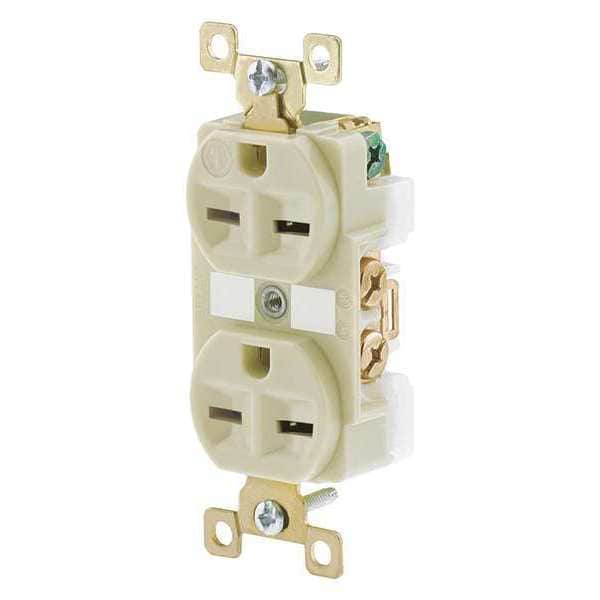

Bryant Straight Blade Receptacle, 6-15R, 15 A, 250V AC, 2 Pole, 3 Wire, Flush Mount, Grounded 5662I - main

Straight Blade Receptacle, 6-15R, 15 A, 250V AC, 2 Pole, 3 Wire, Flush Mount, Grounded

  • Mfr # 5662I

  • Zoro # G4819057

product price: $19.19
/ea

Key Features

Receptacle Type
Duplex
NEMA Receptacle Configuration
6-15R
Current Rating
15 A
Voltage Rating
250V AC
Phase
Single
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
5662I
Zoro #
G4819057
UPC #
781786005495
Country of Origin
China

Dimensions

Mount Hole Center-to-Center Height
3.3 in
Maximum Wire Size
10 AWG
Overall Depth
0.8 in
Face Plate Width
1.4 in
Face Plate Height
2.7 in
Minimum Wire Size
14 AWG
Wire Size
#14 AWG to #12 AWG
Display Size
Standard Sized Product

Details

Item
Straight Blade Receptacle
Receptacle Type
Duplex
NEMA Receptacle Configuration
6-15R
Current Rating
15 A
Voltage Rating
250V AC
Phase
Single
Number of Poles
2
Number of Wires
3
Wire Connection Type
Screw Terminals
Wiring Method
Back, Side
Grounding
Grounded
Housing Color
Ivory
Mount Type
Flush
Standards
CSA Certified C22.2, Federal Specification W-C-596, NEMA WD-6, UL 498
Resistance Properties
Corrosion Resistant
Flange Type
Non-Flanged
Mounting Type - Plugs and Receptacles
Flush
Wiring Method - Plugs and Receptacles
Back and Side
Surge Suppression
No
Weather Resistant - Plugs and Receptacles
No
Number of Gangs
1
Outlet Type
Duplex
Tamper Resistant
No
NEMA Receptacle Configuration - Plugs and Receptacles
6-15R
HP
1/2 hp
Corrosion Resistant
Yes
Outlet Type - Plugs and Receptacles
Standard Duplex
Power Indicator
No
Material
Nylon
Voltage
250VAC
Application Environment
Harsh and Heavy Use Industrial
Weather Resistant
No
Special Features
Corrosion resistant
Mounting Type
Flush
Sub-Category
Duplex Receptacles
Cover Type
No Cover
GFCI
No
Grade
Federal Specification
AFCI
No
Maximum Operating Temperature
167 Degrees F
Polarized
Yes
Market
Industrial
Housing Material
Nylon
Includes Mounting Hardware
Yes
Minimum Operating Temperature
-40 Degrees F
Connection Orientation
Straight
Surge Protection
No
UL 94 Flammability Rating
V-2
Horsepower Rating
1 1/2 hp
Includes
Mounting Hardware
Wattage
3750
Series
Extra Heavy Duty
Application
Extra Heavy Duty Industrial Specification Grade
Style
Finder Groove Face
Nema Rating
6-15R
Material - Mounting Hardware
Screw Mounting
Environmental Conditions
Indoor Dry Unless Protected By Additional Means

Description

Receptacle, Connection Orientation Straight, Cover Type No Cover, Current Rating 15 A, GFCI No, Grounding Grounded, Housing Color Ivory, Housing Material Nylon, Mount Type Flush, NEMA Receptacle Configuration 6-15R, Number of Gangs 1, Number of Poles 2, Number of Wires 3, Phase Single, Polarized Yes, Receptacle Type Duplex, Resistance Properties Corrosion Resistant, Standards CSA Certified C22.2, Federal Specification W-C-596, NEMA WD-6, UL 498, Voltage Rating 250V AC
