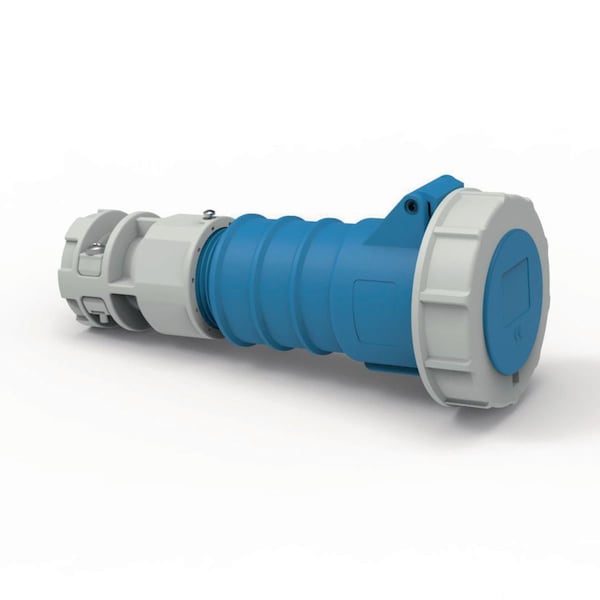

Bryant Watertight Pin & Sleeve Connector, 16/20 A, 200/250V AC, Three Phase, 3 Pole, IEC Grounding BRY420C9W - main

Watertight Pin & Sleeve Connector, 16/20 A, 200/250V AC, Three Phase, 3 Pole, IEC Grounding

  • Mfr # BRY420C9W

  • Zoro # G704395188

product price:  $223.99
/ea
Free Shipping & Returns

Key Features

Current Rating
16/20 A
Voltage Rating
200/250V AC
Phase
Three
Number of Poles
3
Number of Wires
4
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
BRY420C9W
Zoro #
G704395188
UPC #
781786781573
Country of Origin
Germany

Dimensions

Size
Standard
Wire Size
#14 AWG to #12 AWG

Details

Item
Watertight Pin & Sleeve Connector
Current Rating
16/20 A
Voltage Rating
200/250V AC
Phase
Three
Number of Poles
3
Number of Wires
4
IP Rating
IP67
NEMA Enclosure Rating
Not Rated
Grounding Style
IEC
Housing Color
Blue
Standards
UL 1686
Resistance Properties
Corrosion Resistant, Impact Resistant, Watertight
Features
IP67 environmental ratings; Impact and corrosion resistant insulated non-metallic housing; Sequential contact engagement to prevent a momentary over-voltage; External strain relief; Glandless water ingress protection
Material
PBT
Application
High Ampacity Connections
Industry Standard(s)
All constructions are UL Listed & cUL Listed, FileE14633, UL1686 Standard for Pin & Sleeve Configurations, VDE, CE
Temperature Rating
Maximum Continuous: 75° C; Minimum Continuous: -40° C w/o impact, -25° with impact.
Ingress Protection
IP67
Dielectric Strength
Withstand 3000V AC
Environmental Conditions
IP67
Series
Watertight IP67
Mounting Type
Cord Mounted
Insulation
Insulated Body
Wire Connection Type
Pressure Screw Terminal

Description

IEC Pin and Sleeve, Watertight Connector Body, 16/20 A, 3 Phase 200-250 VAC
