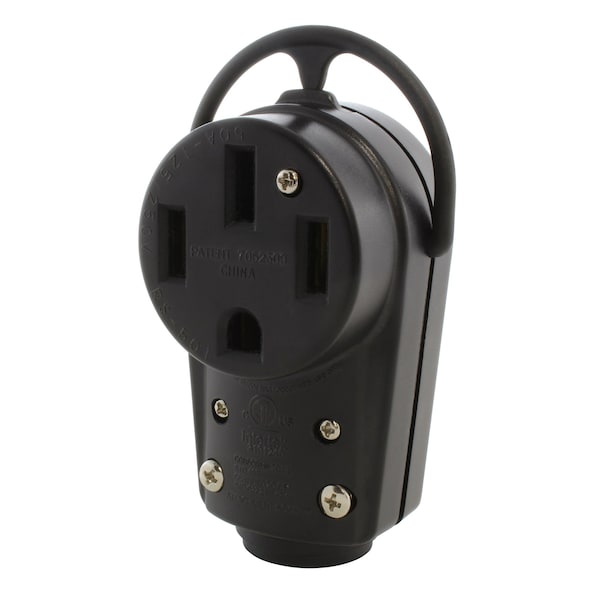

Straight Blade Receptacle, 14-50R, 50 A, 125/250V AC, 3 Pole, 4 Wire, Surface Mount, Grounded
Mfr # AS1450R
Zoro # G012321206
Key Features
Specifications
Product Information
- MFR #
- AS1450R
- Zoro #
- G012321206
- UPC #
- 810159150651
- Country of Origin
- Taiwan, Province of China
Details
- Item
- Straight Blade Receptacle
- Receptacle Type
- Single
- NEMA Receptacle Configuration
- 14-50R
- Current Rating
- 50 A
- Voltage Rating
- 125/250V AC
- Phase
- Single
- Number of Poles
- 3
- Number of Wires
- 4
- Wire Connection Type
- Screw Terminals
- Wiring Method
- Back
- Grounding
- Grounded
- Housing Color
- Black
- Mount Type
- Surface
- IP Rating
- IP20
- Standards
- ETL 3191240, UL Standard 498A
- Resistance Properties
- Chemical Resistant, Impact Resistant, Weather Resistant
- Flange Type
- Non-Flanged
- Material
- Nylon
- Wattage Rataing
- 12500W
- Male/Female
- Female
- Number of Female Connectors
- 1
- Indoor/Outdoor
- Indoor/Outdoor
- Application
- Female Connector Wiring Device
Description
This AC WORKS brand wiring device (model AS1450R) is a solid, industrial‐grade NEMA 14‐50R straight‐blade female connector built to withstand impacts, chemicals, and harsh weather conditions. It features a durable housing, thick copper prongs, and a strain‐relief structure compatible with SJT, SJO, SOO, STW 10/4, 8/4, and 6/4 cable, making it ideal for heavy‐duty power applications and DIY cord‐building projects. The UL‐listed 14‐50R connector is marked “Indoor Use Only”, meaning it should be installed inside a protected enclosure. It can still be safely used outdoors-such as at campsites-when paired with outdoor‐rated plugs or inlet boxes. This wiring device meets UL Standard 498A and ETL 3191240 requirements and includes a 1‐year limited warranty.
- NEMA 14‐50R 50A 125/250V straight‐blade female connector
- Industrial‐grade construction resists impacts, chemicals, and weather
- Strain‐relief structure supports 10/4, 8/4, and 6/4 cable
- Thick, high‐quality copper prongs for reliable conductivity
- Ideal for repairing or building custom power cords
- UL 498A and ETL 3191240 listed
- Marked Indoor Use Only; safe outdoors with outdoor‐rated plugs/inlets
- Includes 1‐year limited warranty
