  11. Watertight Pin & Sleeve Plug, 30 A, 600V AC, 3 Pole, Black, Screw Terminals Wire Connection Type

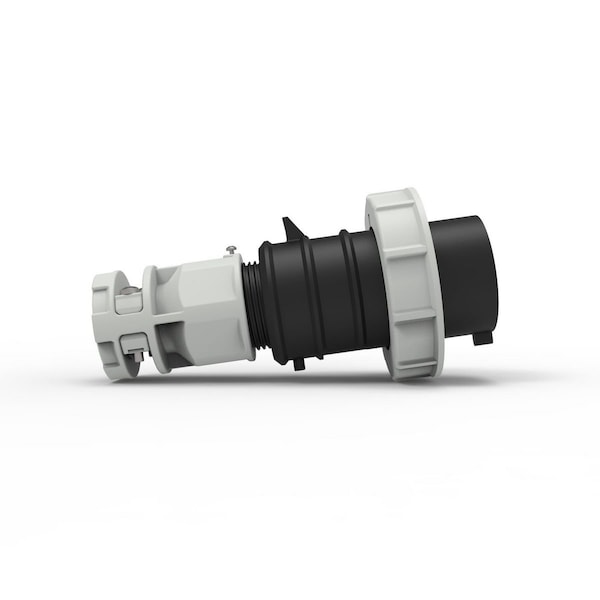

Bryant Watertight Pin & Sleeve Plug, 30 A, 600V AC, 3 Pole, Black, Screw Terminals Wire Connection Type BRY430P5W - main

Watertight Pin & Sleeve Plug, 30 A, 600V AC, 3 Pole, Black, Screw Terminals Wire Connection Type

  • Mfr # BRY430P5W

  • Zoro # G304395151

product price: $314.99
/ea
Free Shipping & Returns

Key Features

Current Rating
30 A
Voltage Rating
600V AC
Number of Poles
3
Number of Wires
4
IP Rating
IP67
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
BRY430P5W
Zoro #
G304395151
UPC #
781786782181
Country of Origin
Germany

Dimensions

Size
Standard
Wire Size
#10 AWG to #8 AWG

Details

Item
Watertight Pin & Sleeve Plug
Current Rating
30 A
Voltage Rating
600V AC
Number of Poles
3
Number of Wires
4
IP Rating
IP67
Wire Connection Type
Screw Terminals
Housing Color
Black
Cap Type
No Cap or Cover
Standards
UL Listed, cUL Listed, CE
Resistance Properties
Impact Resistant, Corrosion Resistant
Material
PBT
Features
IP67 environmental ratings; Impact and corrosion resistant insulated non-metallic housing; Sequential contact engagement to prevent a momentary over-voltage; UL approved screwless terminations; Glandless water ingress protection
Application
High Ampacity Connections
Mounting Type
Cord Mounted
Temperature Rating
Maximum Continuous: 75° C; Minimum Continuous: -40° C w/o impact, -25° with impact.
Environmental Conditions
IP67
Dielectric Strength
Withstand 3000V AC
Ingress Protection
IP67
Insulation
Insulated Body
Industry Standard(s)
All constructions are UL Listed & cUL Listed, FileE14633, UL1686 Standard for Pin & Sleeve Configurations, CE
Series
Watertight IP67
NEMA Enclosure Rating
Not Rated
Phase
3

Description

IEC Pin and Sleeve, Watertight Plug, 30 A, 3 Phase 600 VAC
