  11. Watertight Pin & Sleeve Receptacle, 20 A, 250V AC, Single Phase, 2 Pole, IEC Grounding, Blue

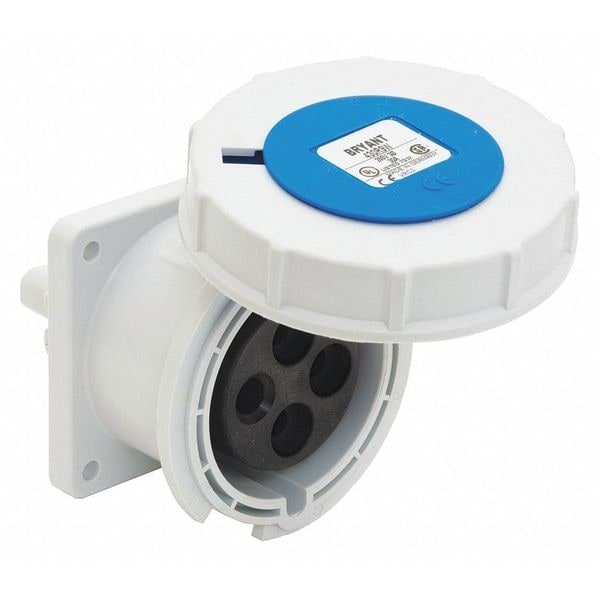

Bryant Watertight Pin & Sleeve Receptacle, 20 A, 250V AC, Single Phase, 2 Pole, IEC Grounding, Blue BRY320R6W - main

Watertight Pin & Sleeve Receptacle, 20 A, 250V AC, Single Phase, 2 Pole, IEC Grounding, Blue

  • Mfr # BRY320R6W

  • Zoro # G4571519

product price: $105.25
/ea
Free Shipping & Returns

Key Features

Current Rating
20 A
Voltage Rating
250V AC
Phase
Single
Number of Poles
2
Number of Wires
3
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Unlock tax-exempt savings
Add Tax Exemption

Specifications

Product Information

MFR #
BRY320R6W
Zoro #
G4571519
UPC #
-
Country of Origin
Germany

Dimensions

Minimum Wire Size
14 AWG
Maximum Wire Size
10 AWG
Wire Size
#14 AWG to #12 AWG
Size
Standard

Details

Item
Watertight Pin & Sleeve Receptacle
Current Rating
20 A
Voltage Rating
250V AC
Phase
Single
Number of Poles
2
Number of Wires
3
IP Rating
IP67
NEMA Enclosure Rating
Not Rated
Wire Connection Type
Screw Terminals
Housing Color
Blue
Cap Type
No Cap or Cover
Standards
All constructions are UL Listed & cUL Listed, FileE14632, UL1686 Standard for Pin & SleeV ACe Configurations, V ACDE, CE
Resistance Properties
Abrasion Resistant, Chemical Resistant, Corrosion Resistant, Shatter and Crack Resistant, Warp Resistant, Watertight
Item - Plugs and Receptacles
Watertight Pin and Sleeve Receptacle
Body Material - Pin and Sleeve
Nylon
Color - Plugs and Receptacles
Blue
Color
Blue
Voltage
250VAC
Amps
20
Switch Rated
No
Body Material
Nylon
Phase - Electrical
1
Power Indication
No
Amps - Plugs and Receptacles
20
Grounding Style
IEC
Voltage - Plugs and Receptacles
250V AC
Features
Neoprene Sealing Glands
Material
PBT
Type
Receptacle
Grounding
Grounded
Number of Gangs
1
Reverse Service
No
Power Indicating Light
No
Flange Type
Flanged
Shrouded
Yes
Horsepower Rating
2 hp
Housing Material
Composite
UL 94 Flammability Rating
HB
Market
Industrial
Connection Orientation
Straight
Dielectric Strength
Withstand 3000V AC
Ingress Protection
IP67
Application
High Ampacity Connections
Nema Rating
Non-NEMA
Voltage - Maximum
600 VAC
Amperage Rating
16/20 A
Temperature Rating
Maximum Continuous: 75° C; Minimum Continuous: -40° C w/o impact, -25° with impact.
Environmental Conditions
IP67
Industry Standard(s)
All constructions are UL Listed & cUL Listed, FileE14632, UL1686 Standard for Pin & Sleeve Configurations, VDE, CE
Insulation
Insulated Body
Mounting Type
Screw Mount
Series
Watertight IP67

Description

Pin and Sleeve Receptacle, Current Rating 20 A, Flange Type Flanged, Grounding Style IEC, Hazardous Location Specification Not Applicable, IP Rating IP67, NEMA Enclosure Rating Not Rated, Number of Gangs 1, Number of Poles 2, Number of Wires 3, Phase Single, Shrouded Yes, Voltage Rating 250V AC, Cap Type Spring-Loaded Cap, Connection Orientation Straight, Grounding Grounded, Horsepower Rating 2 hp, Housing Color Blue, Housing Material Composite, Market Industrial, Maximum Wire Size 10 AWG
