  11. Watertight Pin & Sleeve Receptacle, 30 A, 480V AC, Single Phase, 3 Pole, IEC Grounding, Red

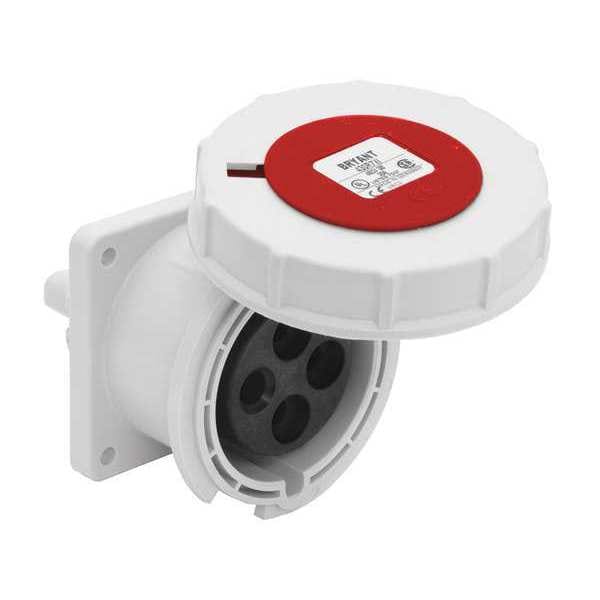

Bryant Watertight Pin & Sleeve Receptacle, 30 A, 480V AC, Single Phase, 3 Pole, IEC Grounding, Red BRY430R7W - main

Watertight Pin & Sleeve Receptacle, 30 A, 480V AC, Single Phase, 3 Pole, IEC Grounding, Red

  • Mfr # BRY430R7W

  • Zoro # G4439079

product price: $192.50
/ea
Free Shipping & Returns

Key Features

Phase
Single
Number of Poles
3
Number of Wires
4
IP Rating
IP67
NEMA Enclosure Rating
Not Rated
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Unlock tax-exempt savings
Add Tax Exemption

Specifications

Product Information

MFR #
BRY430R7W
Zoro #
G4439079
UPC #
781786251274
Country of Origin
Germany

Dimensions

Minimum Wire Size
3 AWG
Maximum Wire Size
1/0 AWG
Wire Size
#10 AWG to #8 AWG
Size
Standard

Details

Item
Watertight Pin & Sleeve Receptacle
Current Rating
30 A
Voltage Rating
480V AC
Phase
Single
Number of Poles
3
Number of Wires
4
IP Rating
IP67
NEMA Enclosure Rating
Not Rated
Wire Connection Type
Screw Terminals
Housing Color
Red
Cap Type
No Cap or Cover
Standards
All constructions are UL Listed & cUL Listed, FileE14632, UL1686 Standard for Pin & SleeV ACe Configurations, CE
Resistance Properties
Abrasion Resistant, Chemical Resistant, Corrosion Resistant, Shatter and Crack Resistant, Warp Resistant, Watertight
Power Indication
No
Grounding Style
IEC
Switch Rated
No
HP
7 1/2 hp
Body Material - Pin and Sleeve
Nylon
Body Material
Nylon
Material
PBT
Features
Neoprene Sealing Glands
Horsepower Rating
7 1/2 hp
Connection Orientation
Straight
Number of Gangs
1
Shrouded
Yes
Housing Material
Composite
Market
Industrial
Reverse Service
No
Flange Type
Flanged
Power Indicating Light
No
Dielectric Strength
Withstand 3000V AC
Environmental Conditions
IP67
Series
Watertight IP67
Insulation
Insulated Body
Temperature Rating
Maximum Continuous: 75° C; Minimum Continuous: -40° C w/o impact, -25° with impact.
Application
High Ampacity Connections
Ingress Protection
IP67
Industry Standard(s)
All constructions are UL Listed & cUL Listed, FileE14632, UL1686 Standard for Pin & Sleeve Configurations, CE
Mounting Type
Screw Mount

Description

Watertight Pin and Sleeve Receptacle, Current Rating 30 A, Flange Type Flanged, Grounding Style IEC, IP Rating IP67, NEMA Enclosure Rating Not Rated, Number of Gangs 1, Number of Poles 3, Number of Wires 4, Phase Single, Three, Shrouded Yes, Voltage Rating 125/250/480V AC, Cap Type Spring-Loaded Cap, Connection Orientation Straight, Grounding Grounded, Horsepower Rating 7 1/2 hp, Housing Color Red, Housing Material Composite, Market Industrial, Maximum Wire Size 1/0 AWG, Minimum Wire Size 3 AWG
