  11. Twist-On Wire Connector, 10 AWG Max, Red, Polypropylene Insulation, 600 V, 500 PK

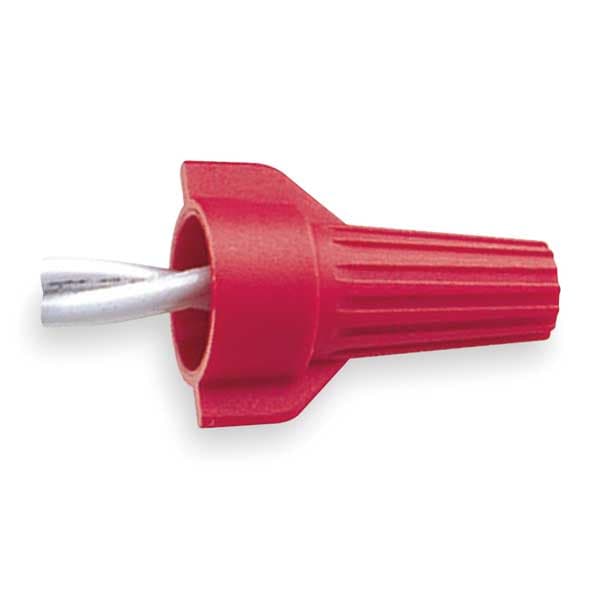

Buchanan Twist-On Wire Connector, 10 AWG Max, Red, Polypropylene Insulation, 600 V, 500 PK WT52-B - main

Twist-On Wire Connector, 10 AWG Max, Red, Polypropylene Insulation, 600 V, 500 PK

  • Mfr # WT52-B

  • Zoro # G3346077

product price: $47.99
/pk 500, $0.10/ea

Key Features

Type
Twist-On
Maximum Wire Size
10 AWG
Insulation Material
Polypropylene
Maximum Voltage
600 V
Minimum Wire Combination
(2) 14 AWG
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
WT52-B
Zoro #
G3346077
UPC #
781789611037
Country of Origin
Canada

Dimensions

Maximum Wire Size
10 AWG
Minimum Wire Size
18 AWG
Height
0.91 in
Width
0.63 in
Overall Width
0.63 in
For Minimum Wire Size - Solid
18 AWG

Details

Item
Twist-On Wire Connector
Type
Twist-On
Color
Red
Insulation Material
Polypropylene
Maximum Voltage
600 V
Minimum Wire Combination
(2) 14 AWG
Maximum Wire Combination
(5) 12 AWG
Maximum Operating Temperature
221 Degrees F
UL 94 Flammability Rating
V-2
Application
General Purpose
Standards
CSA Certified, UL Listed
Series
WT52
Special Features
Contoured Wing Design Provides Enhanced Torque, Expanding, Square-Wire Spring Creates Secure Connections, Wide, Deep Skirt Opening Accommodates a Variety of Wire Combinations
For Conductor Material
Copper
Maximum Conductors
6
Material
Steel
Termination Style
Twist-On

Description

Twist-On Wire Connectors, Color Red, For Conductor Material Copper, Maximum Operating Temperature 221 Degrees F, Maximum Voltage 600 V, Minimum Wire Combination (2) 14 AWG, Maximum Wire Combination (5) 12 AWG, Contact Finish Zinc, Contact Material Steel, UL 94 Flammability Rating V-2, Maximum Conductors 6, Standards CSA Certified, UL Listed, Wire Connector Style Wing, Fill Material Not Applicable, Insulation Material Polypropylene, Maximum Single Wire Size 10 AWG, Minimum Single Wire Size 18 AWG
