  11. Twist-On Wire Connector, 10 AWG Max, Yellow, Polypropylene Insulation, 600 V, 100 PK
Buchanan Twist-On Wire Connector, 10 AWG Max, Yellow, Polypropylene Insulation, 600 V, 100 PK WT4-1 - main

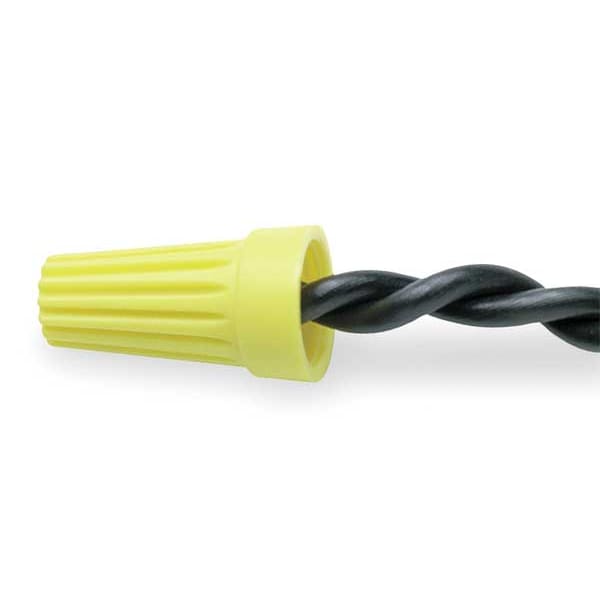

Twist-On Wire Connector, 10 AWG Max, Yellow, Polypropylene Insulation, 600 V, 100 PK

  • Mfr # WT4-1

  • Zoro # G2926262

product price: $10.65
/pk 100, $0.11/ea

Key Features

Type
Twist-On
Maximum Wire Size
10 AWG
Insulation Material
Polypropylene
Maximum Voltage
600 V
Minimum Wire Combination
(3) 20 AWG
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
WT4-1
Zoro #
G2926262
UPC #
781789610061
Country of Origin
Canada

Dimensions

Maximum Wire Size
10 AWG
Minimum Wire Size
22 AWG
Width
0.52 in
Height
0.55 in
Overall Width
0.52 in

Details

Item
Twist-On Wire Connector
Type
Twist-On
Color
Yellow
Insulation Material
Polypropylene
Maximum Voltage
600 V
Minimum Wire Combination
(3) 20 AWG
Maximum Wire Combination
(4) 14 AWG with (1) 18 AWG
Maximum Operating Temperature
221 Degrees F
UL 94 Flammability Rating
V-2
Standards
CSA Certified, UL Listed
Series
WT4
Wire Connector Style
Standard
Application
General Purpose
Special Features
Deep Skirt Protects Against Flash-Over, Fixed, Square-Wire Spring Creates Secure Connections, Positive Grip Shell Design for Fast, Easy Installation
Maximum Conductors
5
For Conductor Material
Copper
Material
Steel
Termination Style
Twist-On

Description

Twist-On Wire Connectors, Color Yellow, For Conductor Material Copper, Maximum Operating Temperature 221 Degrees F, Maximum Voltage 600 V, Minimum Wire Combination (3) 20 AWG, Maximum Wire Combination (2) 12 AWG, Contact Finish Zinc, Contact Material Steel, UL 94 Flammability Rating V-2, Maximum Conductors 5, Standards CSA Certified, UL Listed, Wire Connector Style Standard, Fill Material Not Applicable, Insulation Material Polypropylene, Maximum Single Wire Size 8 AWG
