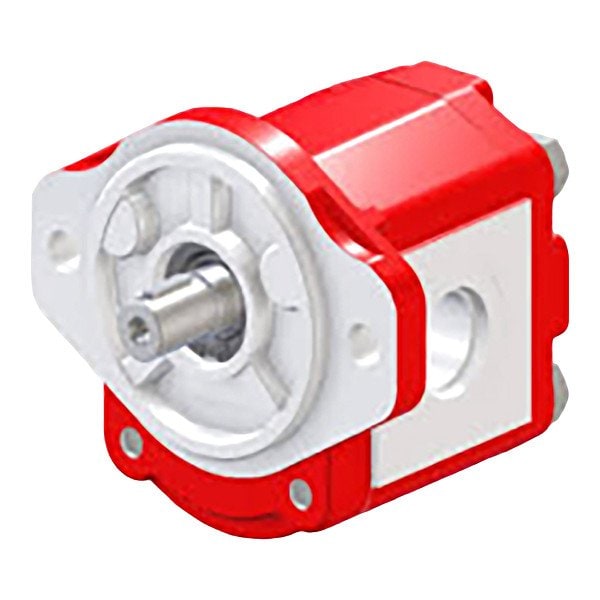

Hydraulic Motor, 5.77 in L
Mfr # APM212/22 D 880, SAE -10/-12
Zoro # G916556537
product price:Â $395.99
/ea
Free Shipping & Returns
Key Features
Series
APM
Flange Mount
SAE A 2-Bolt
Displacement
1.4 cu in/rev
Max. RPM
4,000 RPM
Port Size
1/2 in (Outlet), 3/4 in (Inlet)
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval.
Terms apply.
Get 10% off your order
Sign up for our email list and receive your promo code via email.
Specifications
Product Information
MFR #
APM212/22 D 880, SAE -10/-12
Zoro #
G916556537
UPC #
-
Country of Origin
United States
Dimensions
Port Size
1/2 in (Outlet), 3/4 in (Inlet)
Height
4.47 in
Shaft Dia.
5/8 in
Length
5.77 in
Shaft Length
1.25 in
Details
Series
APM
Flange Mount
SAE A 2-Bolt
Displacement
1.4 cu in/rev
Max. RPM
4,000 RPM
Min. Oil Viscosity
66 SUS
Max. Oil Temp.
230 Degrees F
Seal Material
HNBR; NBR
Continuous Torque
619.552 in-lb
Directional Rotation
Clockwise
Shaft Type
Keyed
Port Location
Side
Housing Material
Aluminum
Pressure Rating
3625 psi
Item
Hydraulic Motor
Description
Hydraulic Motor, 1.4 cu in/rev Displacement, Continuous Torque 619.552 in-lb, Flange Mount SAE A 2-Bolt, 1/2 in (Outlet), 3/4 in (Inlet) Port Size, Side Port Location, Shaft Dia. 5/8 in, Min. Oil Viscosity 66 SUS, Max. RPM 4,000 RPM, Pressure Rating 3625 psi, Shaft Type Keyed, Max. Oil Temp. 110 Degrees C, Shaft Length 1.25 in, Length 5.77 in, Height 4.47 in
