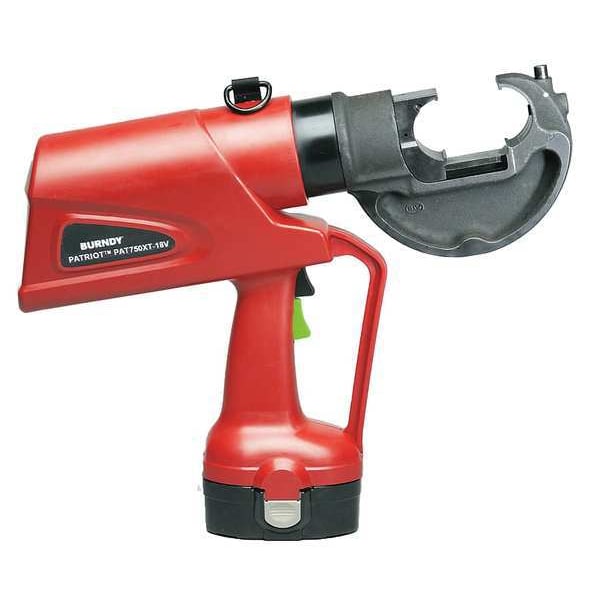

Burndy 15-3/4" Cordless Crimping Tool Kit PAT750XT18V

15-3/4" Cordless Crimping Tool Kit (Discontinued)

  • Mfr # PAT750XT18V
  • Zoro # G4813566
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
PAT750XT18V
Zoro #
G4813566
UPC #
781810560150
Country of Origin
United States

Dimensions

Overall Length
15-3/4"
Width
3-1/2"
Depth
13-1/2"
Jaw Width
1.65"

Details

Capacity
Tension Sleeves: Copper #8 Sol. To 500 kcmil, Aluminum #8 Sol. To 587.2 kcmil, ACSR #4 to 556.5 kcmil; Taps: Copper #14Sol. To 500 kcmil, Aluminum #8 to 500 kcmil; Aerial Cable Copper #6 to 500 kcmil; Terminals and Splices: Copper #8 to 750 kcmil, Aluminum #8 to 750 kcmil, ACSR #4 to 556 kcmil; HYGROUND: Copper #8 to 500 kcmil, Ground Rods 1/2" to 1" Diameter
Features
True, One-Handed Operation for Advance, Retract, and Hold; 12 Ton Output Force; State of the Art Crimping Head Design, 360 Degrees Head Rotation; Ergonomically Balanced Tool Design; Durable High Impact Formed Carrying Case; 5-Year Limited Warranty on Tool. 3-Year Warranty on Battery and Charger
Handle Type
Pistol Grip
Corded/Cordless
Cordless
Crimping Die Series
U Style
Max. Crimping Force - Crimper
12 ton
Battery Capacity
2.6 Ah
Includes
(2) Batteries, Charger, Case
Cordless Tool Battery Type
NiMH
Capacity Aluminum Lug - Crimper
8 AWG to 750 kcmil
Crimping Force
12 tons, 10,000 psi
Voltage
18.0 V
Item
Cordless Crimping Tool Kit
Approximate Cycle Time
2.0 sec
Auto-Cycle
Yes
Battery Type
NiMH
Primary Application - Crimping
Electrical Wire and Cable Crimping
Application
For Use On: 8 AWG Solid - 500 KCMIL Copper, 8 AWG Solid - 587.2 KCMIL Aluminum, 4 AWG - 556.5 KCMIL ACSR (Tension Sleeves), 14 AWG Solid - 500 KCMIL Copper, 8 AWG - 500 KCMIL Aluminum (Taps), Aerial Cable: 6 AWG - 500 KCMIL, 8 AWG - 750 KCMIL Aluminum And Copper, 4 AWG - 556 KCMIL ACSR (Terminals And Splices), 8 AWG - 500 KCMIL Copper (HYGROUND Cable/Ground Rod)
Rotating Angle (Deg.)
360
Head Style - Crimper
C-Head
Includes - Cordless Crimper
(1) Battery Charger (PATCHGR-LI), (1) Tool Storage - Carrying Case, (2) Batteries (BAT18VLI)
Series
PAT
Corded/Banded
Cordless
Capacity Copper Lug - Crimper
8 AWG to 750 kcmil
Head Style
C-Head
Includes Charger
Yes
Included Charger Part Number
PATCHGR-LI
Cordless Tool Kit Contents
(2) Batteries, Bare Tool, Charger
Included Battery Part Number
BAT18VLI

Description

Cordless Crimping Tool Kit, Crimping Force 12 tons, 10,000 psi, Head Style C-Head, Handle Type Pistol Grip, Cordless Tool Kit Contents (2) Batteries, Bare Tool, Charger, Battery Capacity 2.6 Ah, Voltage 18 V, Auto-Cycle Yes

Restrictions

WARNING: This product can expose you to chemicals including Cobalt metal powder, which is known to the State of California to cause cancer. For more information go to www.P65Warnings.ca.gov
