  11. Compression Adapter, 1/0 AWG Max, Standard Barrel, Aluminum, Tan

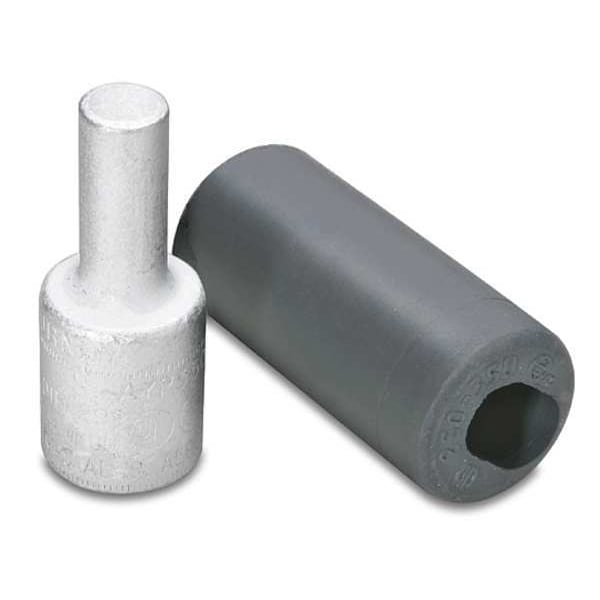

Burndy Compression Adapter, 1/0 AWG Max, Standard Barrel, Aluminum, Tan AYP1/0 - main

Compression Adapter, 1/0 AWG Max, Standard Barrel, Aluminum, Tan

  • Mfr # AYP1/0

  • Zoro # G4705321

product price: $26.95
/ea

Key Features

For Wire Size
1/0 AWG
For Conductor Material
Aluminum, Copper
Material
Aluminum
Barrel Size
Standard
Die Code
296
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
AYP1/0
Zoro #
G4705321
UPC #
781810556443
Country of Origin
United States

Dimensions

For Wire Size
1/0 AWG
Barrel Size
Standard
Length
2.01 in
Min. Wire Size
1 AWG
Width
0.6 in
Diameter
19/64 in
Max. Wire Size
1/0 AWG
Length (Straight Wireway)
2.01 in
Pin Equivalent Wire Size
2 AWG
Barrel Length
1 in
For Stranded Copper Wire Size - Minimum
1/0 AWG
Pin Length
0.84 in
Barrel Diameter
0.6 in
Pin Diameter
0.297 in
Strip Length
1 1/16 in
For Stranded Copper Wire Size - Maximum
1/0 AWG
For Stranded Aluminum Wire Size - Maximum
1/0 AWG
Overall Length
2.01 in
Equivalent Pin Size
2 AWG
Conductor - Copper Flex I Size Range
1/0 AWG
Dimension - Length Overall inch
2.01 in
Dimension - L Length Overall mm
51 mm
Conductor - Copper Flex I Size
1/0 AWG
Conductor Size
1/0 AWG
Conductor - AL Str Size Range
1/0 AWG
Conductor - Copper DLO Size Range
1/0 AWG
Conductor - Copper Str Size Range
1/0 AWG
Minimum Wire Size
1 AWG
For Maximum Wire Size - Stranded
1/0 AWG
For Minimum Wire Size - Stranded
1/0 AWG
Maximum Run Wire Size
1/0 AWG
For Maximum Wire Size - Solid
1/0 AWG
For Minimum Wire Size - Solid
1 AWG
Maximum Wire Size
1/0 AWG

Details

Item
Compression Adapter
For Conductor Material
Aluminum, Copper
Material
Aluminum
Die Code
296
Color Code
Tan
Standards
CSA Approved; UL468A-468B; UL Listed
For Use With
Hytools Dieless Tools MY29-3, Y644HS, Y81KFT, Y81KFTMBH, PAT81KFT-18V
Application
For Aluminum and Copper Conductors, Mechanical Connectors in Molded Case Circuit Breakers, Panel Board Equipment and Meter Sockets
Max. Voltage
35 kv
Color
Tan
Max. Temp.
194°F
Wire Range
1/0 AWG Stranded
Insulation Material
Rubber
Connection Material
Aluminum
Contact Material
Aluminum
Maximum Voltage
35 kV
Connection Orientation
Straight
Compatible Installation Tool Model Number
Hytools Dieless Tools MY29-3, Y644HS, Y81KFT, Y81KFTMBH, PAT81KFT-18V
Number of Crimps
1
Contact Finish
Tin
Type
Pin Adapter
Insulated
Yes
Finish
Tin Plated
Voltage Rating
35 kV
UL Listed
Yes
Pin Type
Solid
Industry Standard(s)
UL 486A-486B
Trade Name
HYPLUGâ„¢
Conductor Type
CODE/FLEX
Certification - CSA Approved
Yes
Finish Type
Tin-Plated
Maximum Operating Temperature
194Â Degrees F
Maximum Conductors
1
RoHS Compliant
Yes

Description

Compression Pin Terminal, Connection Orientation Straight, Die Code 296, For Conductor Material Aluminum, Copper, For Stranded Copper Wire Size - Minimum 1/0 AWG, For Stranded Copper Wire Size - Maximum 1/0 AWG, Insulation Material Rubber, Maximum Voltage 35 kV, Number of Crimps 1, Pin Diameter 0.297 in, Pin Equivalent Wire Size 2 AWG, Pin Length 0.84 in, Contact Finish Tin, Contact Material Aluminum, Barrel Diameter 0.6 in, Barrel Length 1 in, Color Code Tan
