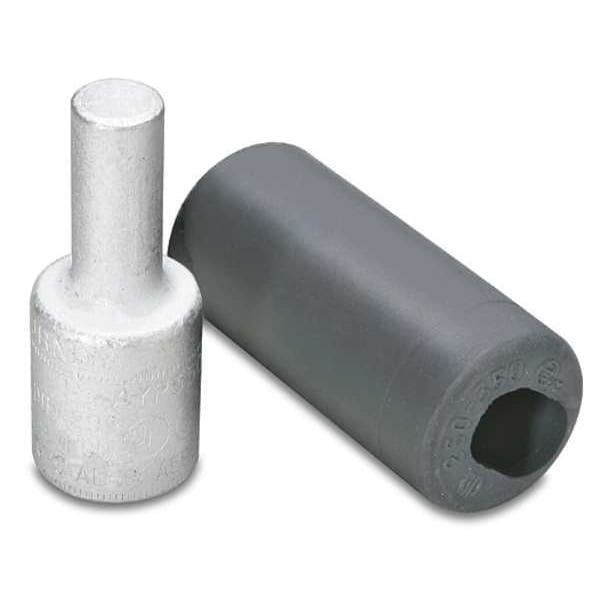

Compression Adapter, 750 kcmil Max, Standard Barrel, Aluminum, Yellow
Mfr # AYP750
Zoro # G4691531
product price: $71.99
/eaKey Features
For Wire Size
750 kcmil
For Conductor Material
Aluminum, Copper
Material
Aluminum
Barrel Size
Standard
Die Code
936
Get a 10% off coupon
Free 30-day returns
Return PolicyGet 30 days to pay with Net 30
Apply NowReal support from real people
Contact our U.S. based teamSpecifications
Product Information
MFR #
AYP750
Zoro #
G4691531
UPC #
781810556450
Country of Origin
United States
Dimensions
For Wire Size
750 kcmil
Barrel Size
Standard
Length
3.79 in
Max. Wire Size
750 kcmil
Min. Wire Size
500 kcmil
Diameter
13/16 in
Width
1.46 in
Length (Straight Wireway)
3.79 in
For Stranded Aluminum Wire Size - Maximum
750 kcmil
Barrel Length
1.59 in
Strip Length
1 3/4 in
Pin Diameter
0.813 in
Overall Length
3.79 in
Pin Length
1.76 in
For Stranded Copper Wire Size - Minimum
750 kcmil
Pin Equivalent Wire Size
500 kcmil
Barrel Diameter
1.46 in
For Stranded Aluminum Wire Size - Minimum
700 kcmil
For Stranded Copper Wire Size - Maximum
750 kcmil
Dimension - B Outside Diameter inch
0.81 in
Conductor - AL Str Size
750 KCMIL
Conductor - Copper DLO Size Range
535 kcmil
Dimension - B Length inch
1.59 in
Conductor - Copper DLO Size
535 KCMIL
Conductor Size
750 KCMIL
Conductor - AL Str Size Range
750 kcmil
Dimension - B Length fraction
1-5/8 in
Dimension - L Length Overall mm
96 mm
Conductor - Copper Str Size Range
750 kcmil
Conductor - Copper Str Size
750 KCMIL
Dimension - Length Overall inch
3.79 in
Dimension - Strip Length inch
37989
Equivalent Pin Size
500 kcmil
Dimension - A Outside Diameter inch
1.46 in
Dimension - P inch
1.76 in
Conductor - Copper Str Compact Size
750 KCMIL
Minimum Wire Size
500 kcmil
Maximum Run Wire Size
750 kcmil
For Minimum Wire Size - Stranded
750 kcmil
Maximum Wire Size
750 kcmil
For Minimum Wire Size - Solid
500 kcmil
For Maximum Wire Size - Stranded
750 kcmil
For Maximum Wire Size - Solid
750 kcmil
Minimum Run Wire Size
500 kcmil
Description
Compression Pin Terminal, Connection Orientation Straight, Die Code 936, For Conductor Material Aluminum, Copper, For Stranded Copper Wire Size - Minimum 750 kcmil, For Stranded Copper Wire Size - Maximum 750 kcmil, Insulation Material Rubber, Maximum Voltage 35 kV, Number of Crimps 3, Pin Diameter 0.813 in, Pin Equivalent Wire Size 500 kcmil, Pin Length 1.76 in, Contact Finish Tin, Contact Material Aluminum, Barrel Diameter 1.46 in, Barrel Length 1.59 in, Color Code Yellow
