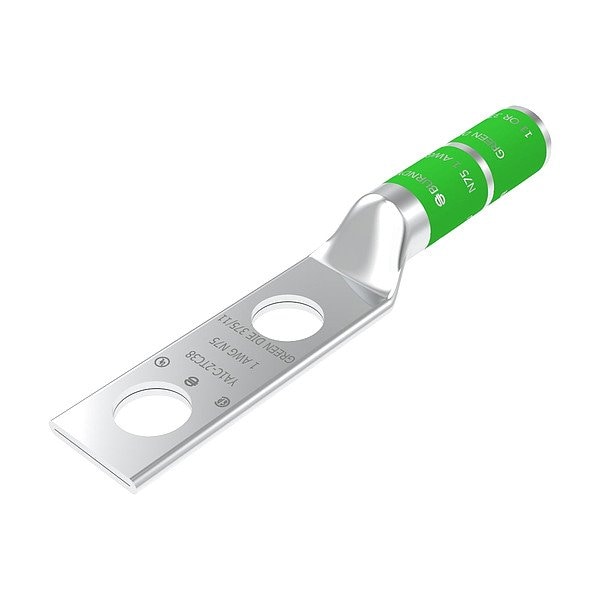

Compression Terminal
- Mfr # YA1C2N
- Zoro # G116437506
product price:Â
$
18.99
/ea
Key Features
Overall Width
0.83 in
Inspection Hole
No
Hole Center to End
0.63 in
For Stranded Copper Wire Size - Maximum
1 AWG
Hole Size
0.56 in
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval.
Terms apply.
Get 10% off your order
Sign up for our email list and receive your promo code via email.
Specifications
Details
- MFR #
- YA1C2N
- Zoro #
- G116437506
- UPC #
- 781810500415
- Country of Origin
- United States
- Item
- Compression Terminal
- Inspection Hole
- No
- Hole Center to End
- 0.63 in
- Die Code
- 11, 375
- Standards
- CSA Certified, UL Listed
- Contact Finish
- Tin
- For Wire Type
- Stranded
- Material
- Copper
- Maximum Voltage
- 35 kV
- Hole Center to Center
- 1.75 in
- Barrel Style
- Chamfered
- Tongue Style
- Standard
- Tongue Angle
- Straight
- Termination Style
- Crimp
- Color Code
- Green
- For Conductor Material
- Copper
- Special Features
- Connectors are Clearly Marked with Stamping and Barrel Color Coding, Electro-Tin Plated Unless Otherwise Specified to Reduce Galvanic Corrosion (Bimetallic) and Resist Corrosive Elements
- Shell Material
- Copper
- Traction Material
- Copper
Dimensions
- Overall Width
- 0.83 in
- For Stranded Copper Wire Size - Maximum
- 1 AWG
- Hole Size
- 0.56 in
- Overall Length
- 4.82 in
- Tongue Width
- 0.83 in
- Tongue Thickness
- 0.12 in
- For Stranded Copper Wire Size - Minimum
- 1 AWG
- Barrel Outside Diameter
- 0.46 in
- Barrel Size
- Long
- For Stud Size
- 1/2 in
- Strip Length
- 1 7/16 in
- Wire Rope Length
- 4.82 in
- Length
- 4.82 in
Description
Compression Terminal
