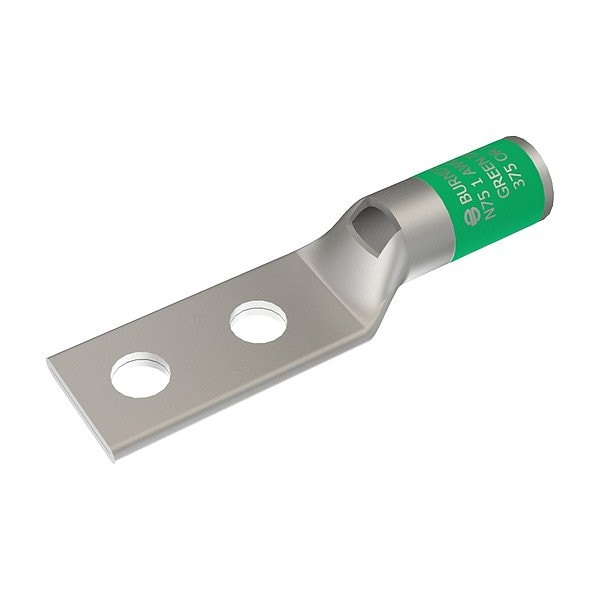

Compression Terminal
- Mfr # YA1CL2TC14
- Zoro # G721849169
product price:Â
$
16.85
/ea
Key Features
Wire Rope Length
2.51 in
Special Features
Connectors are Clearly Marked with Stamping and Barrel Color Coding, Electro-Tin Plated Unless Otherwise Specified to Reduce Galvanic Corrosion (Bimetallic) and Resist Corrosive Elements
Color Code
Green
Overall Width
0.68 in
For Stud Size
1/4 in
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval.
Terms apply.
Get 10% off your order
Sign up for our email list and receive your promo code via email.
Specifications
Product Information
- MFR #
- YA1CL2TC14
- Zoro #
- G721849169
- UPC #
- 781810503614
- Country of Origin
- United States
Dimensions
- Wire Rope Length
- 2.51 in
- Overall Width
- 0.68 in
- For Stud Size
- 1/4 in
- Hole Size
- 0.27 in
- Tongue Width
- 0.68 in
- For Stranded Copper Wire Size - Maximum
- 1 AWG
- Barrel Size
- Standard
- Strip Length
- 15/16 in
- Tongue Thickness
- 0.1 in
- Barrel Outside Diameter
- 0.46 in
- For Stranded Copper Wire Size - Minimum
- 1 AWG
- Overall Length
- 2.51 in
- Length
- 2.51 in
Description
Compression Lug, Barrel Size Standard, Color Code Green, Die Code 11, 375, Tongue Angle Straight, Tongue Width 0.68 in, For Conductor Material Copper, For Stud Size 1/4 in, For Stranded Copper Wire Size - Minimum 1 AWG, For Stranded Copper Wire Size - Maximum 1 AWG, Inspection Hole Yes, Hole Center to Center 0.625 in, Material Copper, Maximum Operating Temperature 194 Degrees F, Maximum Voltage 35 kV, Termination Style Crimp, Standards CSA Certified, UL Listed, Number of Holes 2
