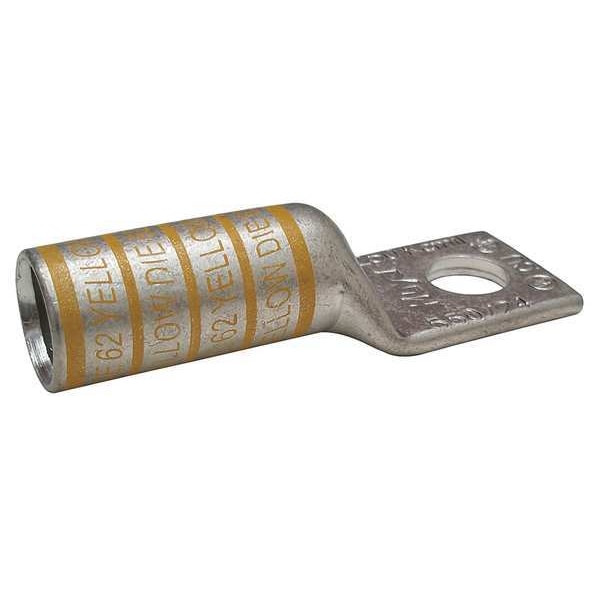

One-Hole Compression Lug, 250 kcmil Max, 3/8 in Stud, Long Barrel, Copper, Yellow
Mfr # 24D006
Zoro # G5206713
product price:Â $5.75
/eaKey Features
For Wire Size
250 kcmil
For Conductor Material
Copper
For Stud Size
3/8 in
Material
Copper
Barrel Size
Long
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval.
Terms apply.
Get 10% off your order
Sign up for our email list and receive your promo code via email.
Specifications
Product Information
- MFR #
- 24D006
- Zoro #
- G5206713
- UPC #
- 190735434161
- Country of Origin
- China
Dimensions
- For Wire Size
- 250 kcmil
- For Stud Size
- 3/8 in
- Barrel Size
- Long
- Tongue Width
- 1.10 in
- Width
- 1.1"
- Length
- 2.8"
- Barrel Length
- Long
- Cable Size
- 250 kcmil
- Length (Straight Wireway)
- 2.8 in
- Barrel Inside Diameter
- 0.61 in
- For Stranded Copper Wire Size - Maximum
- 250 kcmil
- For Stranded Copper Wire Size - Minimum
- 250 kcmil
- Overall Width
- 1.1 in
- Barrel Outside Diameter
- 0.75 in
- Overall Length
- 2.8 in
- Hole Size
- 0.405 in
- Tongue Length
- 0.83 in
- Strip Length
- 1 3/4 in
- Tongue Thickness
- 0.14 in
- Wire Rope Length
- 2.8 in
Description
Compression Lug, Barrel Size Long, Color Code Yellow, Die Code 62, Tongue Angle Straight, Tongue Width 1.1 in, For Conductor Material Copper, For Stud Size 3/8 in, For Stranded Copper Wire Size - Minimum 250 kcmil, For Stranded Copper Wire Size - Maximum 250 kcmil, Inspection Hole Yes, Hole Center to Center Not Applicable, Material Copper, Maximum Operating Temperature 257 Degrees F, Maximum Voltage 35 kV, Termination Style Crimp, Seam Style Seamless, Standards CSA Certified, UL Listed
