Shop BURNDY

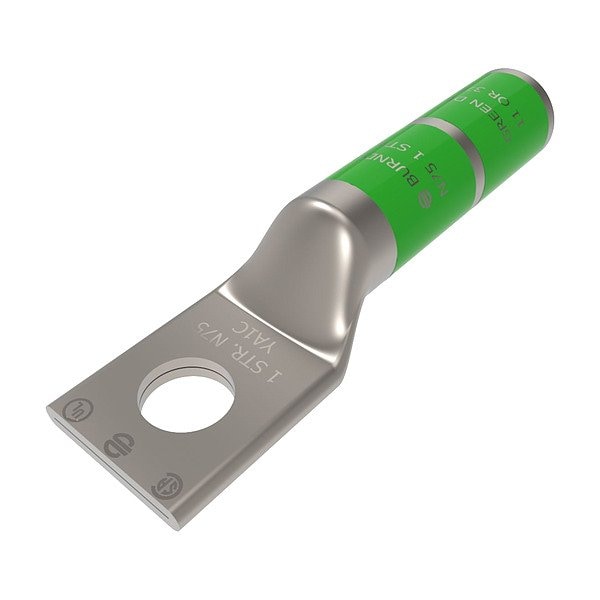

Compression Terminal

  • Mfr # YA1CN

  • Zoro # G516451737

product price:  $17.29
/ea

Key Features

Overall Width
0.83 in
Material
Copper
For Conductor Material
Copper
For Stranded Copper Wire Size - Maximum
1 AWG
Special Features
Connectors are Clearly Marked with Stamping and Barrel Color Coding, Electro-Tin Plated Unless Otherwise Specified to Reduce Galvanic Corrosion (Bimetallic) and Resist Corrosive Elements
See all product information
Get a 10% off coupon
Free 30-day returns Return Policy
Get 30 days to pay with Net 30 Apply Now
Unlock tax-exempt savings Add Tax Exemption

Specifications

Product Information

MFR #
YA1CN
Zoro #
G516451737
UPC #
781810059777
Country of Origin
United States

Dimensions

Overall Width
0.83 in
For Stranded Copper Wire Size - Maximum
1 AWG
Tongue Width
0.83 in
Tongue Thickness
0.12 in
For Stranded Copper Wire Size - Minimum
1 AWG
Hole Size
0.56 in
Barrel Outside Diameter
0.46 in
Strip Length
1 7/16 in
Overall Length
3.06 in
Barrel Size
Long
For Stud Size
1/2 in

Details

Item
Compression Terminal
Material
Copper
For Conductor Material
Copper
Special Features
Connectors are Clearly Marked with Stamping and Barrel Color Coding, Electro-Tin Plated Unless Otherwise Specified to Reduce Galvanic Corrosion (Bimetallic) and Resist Corrosive Elements
Termination Style
Crimp
Inspection Hole
No
Standards
CSA Certified, UL Listed
Die Code
11
Maximum Voltage
35 kV
Tongue Angle
Straight
For Wire Type
Stranded
Hole Center to End
0.63 in
Color Code
Green
Barrel Style
Chamfered
Contact Finish
Tin

Description

Compression Terminal
