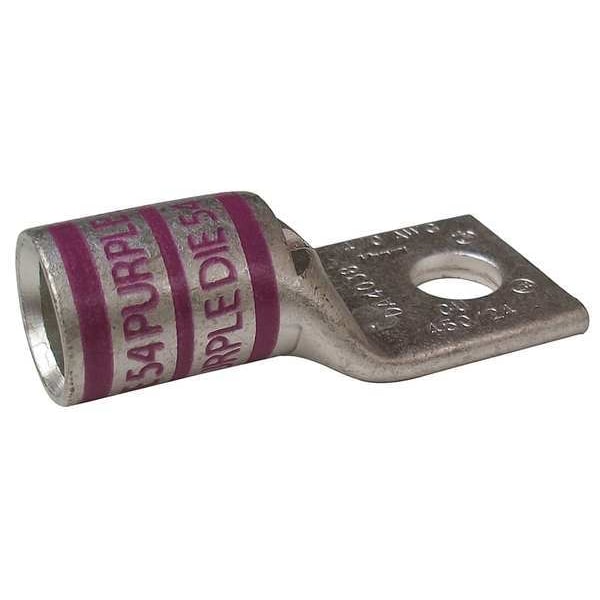

One-Hole Compression Lug, 4/0 AWG Max, 5/16 in Stud, Short Barrel, Copper, Purple
Mfr # 24C357
Zoro # G4665105
product price:Â $5.99
/eaKey Features
For Wire Size
4/0 AWG
For Conductor Material
Copper
For Stud Size
5/16 in
Material
Copper
Barrel Size
Short
Get a 10% off coupon
Free 30-day returns Return Policy
Get 30 days to pay with Net 30 Apply Now
Unlock tax-exempt savings Add Tax Exemption
Specifications
Product Information
MFR #
24C357
Zoro #
G4665105
UPC #
190735432037
Country of Origin
China
Dimensions
For Wire Size
4/0 AWG
For Stud Size
5/16 in
Barrel Size
Short
Tongue Width
1.03 in
Barrel Length
Short
Cable Size
4/0
Width
1.03"
Length
2.14"
Length (Straight Wireway)
2.14 in
Overall Width
1.03 in
Barrel Inside Diameter
0.56 in
Strip Length
1 1/16 in
Hole Size
0.335 in
Tongue Thickness
0.14 in
For Stranded Copper Wire Size - Minimum
4/0 AWG
Barrel Outside Diameter
0.7 in
Tongue Length
0.87 in
Overall Length
2.14 in
For Stranded Copper Wire Size - Maximum
4/0 AWG
Description
One-Hole Lug Compression Connector, Barrel Size Short, Color Code Purple, Die Code 54, Tongue Angle Straight, Tongue Width 1.03 in, For Conductor Material Copper, For Stud Size 5/16 in, For Stranded Copper Wire Size - Minimum 4/0 AWG, For Stranded Copper Wire Size - Maximum 4/0 AWG, Inspection Hole Yes, Material Copper, Maximum Operating Temperature 300 Degrees F, Maximum Voltage 600 V AC, Termination Style Crimp, Seam Style Seamless, Standards CSA Certified, UL Listed, Number of Holes 1
