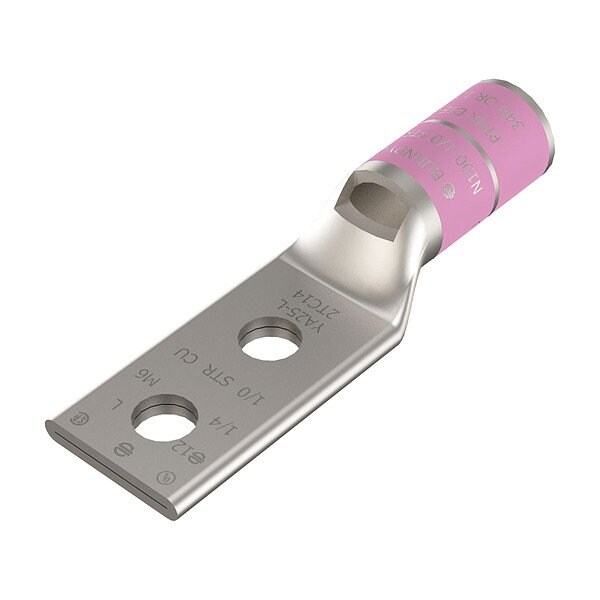

Compression Terminal
Mfr # YA252LN
Zoro # G421673361
product price:Â
$
15.89
/ea
Zoro's best price: not eligible for any other offers or promotions
Key Features
Tongue Thickness
0.11 in
Contact Finish
Tin
Strip Length
15/16 in
Termination Style
Crimp
Die Code
12, 348
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval.
Terms apply.
Get 10% off your order
Sign up for our email list and receive your promo code via email.
Specifications
Product Information
- MFR #
- YA252LN
- Zoro #
- G421673361
- UPC #
- 781810502273
- Country of Origin
- United States
Dimensions
- Tongue Thickness
- 0.11 in
- Strip Length
- 15/16 in
- Barrel Outside Diameter
- 0.51 in
- Tongue Width
- 0.83 in
- For Stranded Copper Wire Size - Minimum
- 1/0 AWG
- Wire Rope Length
- 4.29 in
- For Stranded Copper Wire Size - Maximum
- 1/0 AWG
- For Stud Size
- 1/2 in
- Overall Width
- 0.83 in
- Barrel Size
- Standard
- Hole Size
- 0.56 in
- Overall Length
- 4.29 in
- Length
- 4.29 in
Description
Compression Lug, Barrel Size Standard, Color Code Pink, Die Code 12, 348, Tongue Angle Straight, Tongue Width 0.83 in, For Conductor Material Copper, For Stud Size 1/2 in, For Stranded Copper Wire Size - Minimum 1/0 AWG, For Stranded Copper Wire Size - Maximum 1/0 AWG, Inspection Hole Yes, Hole Center to Center 1.75 in, Material Copper, Maximum Operating Temperature 194 Degrees F, Maximum Voltage 35 kV, Termination Style Crimp, Standards CSA Certified, UL Listed, Number of Holes 2
