Compression Terminal
Mfr # YA2C2TC14E2
Zoro # G021677875
product price:Â
$
17.89
/ea
Zoro's best price: not eligible for any other offers or promotions
Key Features
Tongue Style
Standard
Wire Rope Length
2.98 in
Die Code
10
Contact Finish
Tin
Termination Style
Crimp
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval.
Terms apply.
Get 10% off your order
Sign up for our email list and receive your promo code via email.
Specifications
Product Information
- MFR #
- YA2C2TC14E2
- Zoro #
- G021677875
- UPC #
- 781810019733
- Country of Origin
- United States
Dimensions
- Wire Rope Length
- 2.98 in
- Tongue Thickness
- 0.11 in
- Strip Length
- 1 5/16 in
- Hole Size
- 0.27 in
- For Stranded Copper Wire Size - Maximum
- 2 AWG
- For Stranded Copper Wire Size - Minimum
- 2 AWG
- Barrel Outside Diameter
- 0.42 in
- Barrel Size
- Long
- Tongue Width
- 0.6 in
- Overall Width
- 0.6 in
- For Stud Size
- 1/4 in
- Overall Length
- 2.98 in
- Length
- 2.98 in
Description

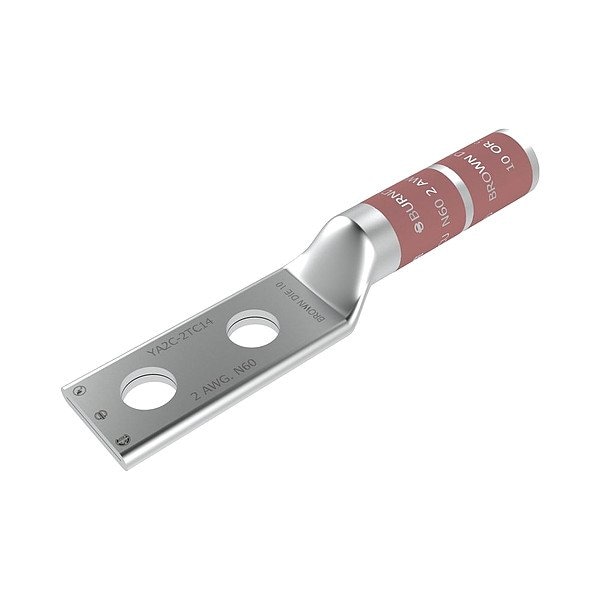

Compression Lug, Barrel Size Long, Color Code Brown, Die Code 10, Tongue Angle Straight, Tongue Width 0.6 in, For Conductor Material Copper, For Stud Size 1/4 in, For Stranded Copper Wire Size - Minimum 2 AWG, For Stranded Copper Wire Size - Maximum 2 AWG, Inspection Hole No, Hole Center to Center 0.75 in, Material Copper, Maximum Operating Temperature 194 Degrees F, Maximum Voltage 35 kV, Termination Style Crimp, Standards CSA Certified, UL Listed, Number of Holes 2
