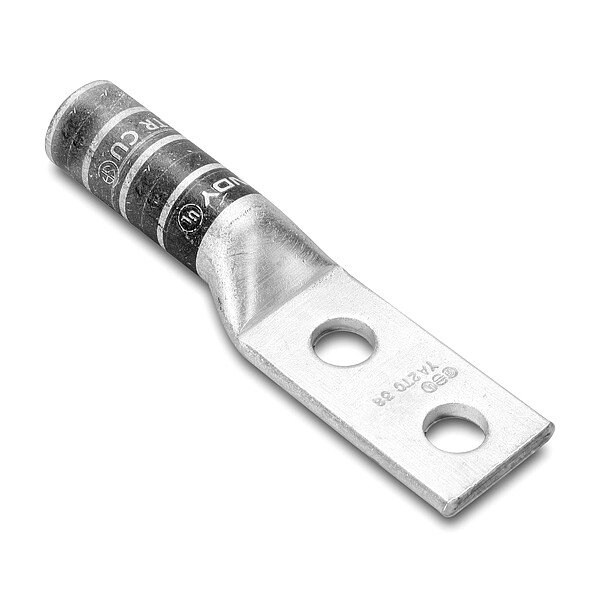

Compression Terminal
Mfr # YA2C2TC38E2
Zoro # G721849152
product price:Â
$
21.35
/ea
Key Features
Hole Center to Center
0.75 in
Barrel Size
Long
Standards
CSA Certified, UL Listed
Strip Length
1 5/16 in
Inspection Hole
No
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval.
Terms apply.
Get 10% off your order
Sign up for our email list and receive your promo code via email.
Specifications
Product Information
- MFR #
- YA2C2TC38E2
- Zoro #
- G721849152
- UPC #
- 781810159538
- Country of Origin
- United States
Dimensions
- Barrel Size
- Long
- Strip Length
- 1 5/16 in
- Tongue Thickness
- 0.11 in
- For Stranded Copper Wire Size - Maximum
- 2 AWG
- Tongue Width
- 0.6 in
- Barrel Outside Diameter
- 0.42 in
- Overall Width
- 0.6 in
- For Stranded Copper Wire Size - Minimum
- 2 AWG
- Wire Rope Length
- 3.17 in
- For Stud Size
- 3/8 in
- Hole Size
- 0.41 in
- Overall Length
- 3.17 in
Description
Compression Lug, Barrel Size Long, Color Code Brown, Die Code 10, Tongue Angle Straight, Tongue Width 0.6 in, For Conductor Material Copper, For Stud Size 3/8 in, For Stranded Copper Wire Size - Minimum 2 AWG, For Stranded Copper Wire Size - Maximum 2 AWG, Inspection Hole No, Hole Center to Center 0.75 in, Material Copper, Maximum Operating Temperature 194 Degrees F, Maximum Voltage 35 kV, Termination Style Crimp, Standards CSA Certified, UL Listed, Number of Holes 2
