Shop BURNDY

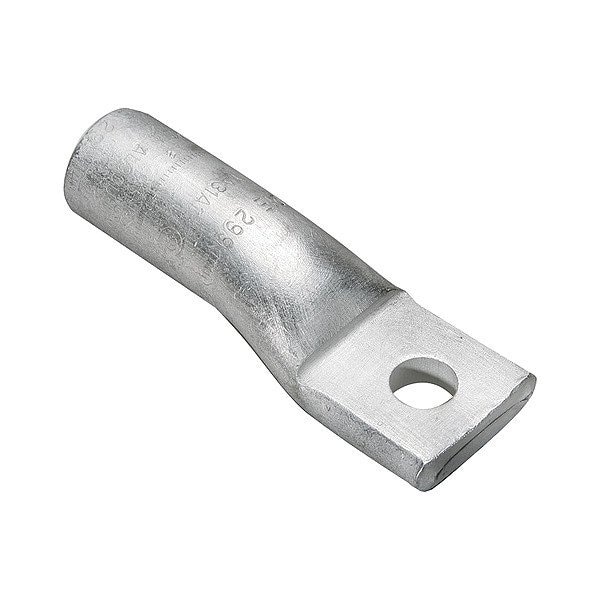

Compression Terminal

  • Mfr # YA30A1

  • Zoro # G716451711

product price:  $56.49
/ea

Key Features

Hole Center to End
0.63 in
Barrel Outside Diameter
1.01 in
For Stud Size
1/2 in
Color Code
Blue
Standards
CSA Certified, UL Listed
See all product information
Get a 10% off coupon
Free 30-day returns Return Policy
Get 30 days to pay with Net 30 Apply Now
Unlock tax-exempt savings Add Tax Exemption

Specifications

Product Information

MFR #
YA30A1
Zoro #
G716451711
UPC #
781810755501
Country of Origin
Mexico

Dimensions

Barrel Outside Diameter
1.01 in
For Stud Size
1/2 in
Strip Length
1 3/4 in
For Stranded Copper Wire Size - Minimum
300 kcmil
For Stranded Aluminum Wire Size - Minimum
300 kcmil
Overall Length
3.9 in
Barrel Size
Standard
Hole Size
0.56 in
Tongue Thickness
0.36 in
Tongue Width
1.38 in
Overall Width
1.38 in
For Stranded Copper Wire Size - Maximum
300 kcmil
For Stranded Aluminum Wire Size - Maximum
300 kcmil

Details

Item
Compression Terminal
Hole Center to End
0.63 in
Color Code
Blue
Standards
CSA Certified, UL Listed
For Wire Type
Stranded
Tongue Angle
Straight
Special Features
Connectors are Clearly Marked with Stamping and Barrel Color Coding, Electro-Tin Plated Unless Otherwise Specified to Reduce Galvanic Corrosion (Bimetallic) and Resist Corrosive Elements
For Conductor Material
Aluminum, Copper
Die Code
470
Contact Finish
Tin
Barrel Style
Chamfered
Tongue Style
Standard
Maximum Voltage
35 kV
Material
Aluminum
Inspection Hole
No
Termination Style
Crimp

Description

Compression Terminal
