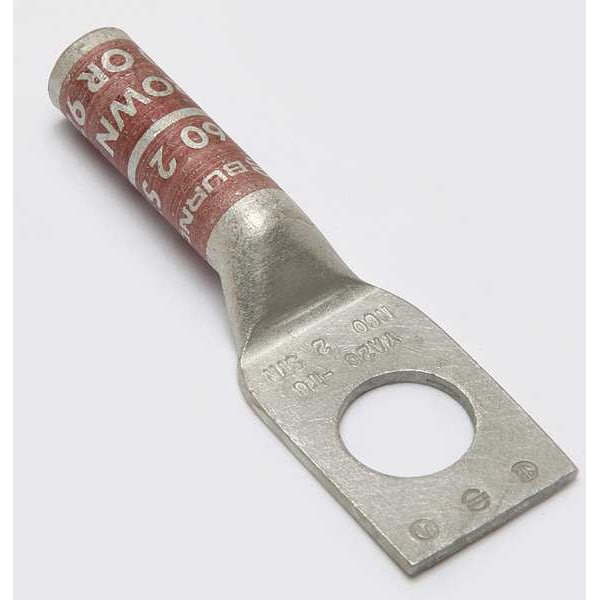

One-Hole Compression Lug, 2 AWG Max, 1/2 in Stud, Long Barrel, Copper, Brown
Mfr # YA2CT6
Zoro # G4667117
product price:Â $15.39
/eaKey Features
For Wire Size
2 AWG
For Conductor Material
Copper
For Stud Size
1/2 in
Material
Copper
Barrel Size
Long
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval.
Terms apply.
Get 10% off your order
Sign up for our email list and receive your promo code via email.
Specifications
Product Information
- MFR #
- YA2CT6
- Zoro #
- G4667117
- UPC #
- 781810555903
- Country of Origin
- United States
Dimensions
- For Wire Size
- 2 AWG
- For Stud Size
- 1/2 in
- Barrel Size
- Long
- Tongue Width
- 0.81 in
- Cable Size
- 2 AWG
- Width
- 0.81"
- Barrel Length
- Long
- Length
- 2.74"
- Overall Width
- 0.81 in
- Overall Length
- 2.74 in
- Length (Straight Wireway)
- 2.74 in
- For Stranded Copper Wire Size - Maximum
- 2 AWG
- Strip Length
- 1 5/16 in
- For Stranded Copper Wire Size - Minimum
- 2 AWG
- Barrel Outside Diameter
- 0.42 in
- Tongue Length
- 1.12 in
- Hole Size
- 0.52 in
- Tongue Thickness
- 0.08 in
- Dimension - Hole Size fraction
- 1 to 2
- Dimension - Hole Size inch
- 0.52 in
- Dimension - Z inch
- 0.56 in
- Dimension - L Length Overall mm
- 70 mm
- Dimension - B Length inch
- 1.25 in
- Conductor - Copper Str Size Range
- 2 AWG
- Dimension - N inch
- 0.56 in
- Dimension - Bolt Size fraction
- 1 to 2
- Dimension - Length Overall inch
- 2.74 in
- Conductor - Copper Solid Size
- 2 AWG
- Dimension - Pad Width inch
- 0.81 in
- Conductor Size
- 2 AWG
- Dimension - Strip Length inch
- 42374
- Dimension - Bolt Size inch
- 0.5
- Conductor - Copper Str Size
- 2 AWG
- Dimension - Stud Size fraction
- 1 to 2
- Dimension - Bolt Hole Size inch
- 0.52 in
- Dimension - Outside Diameter inch
- 0.42 in
- Dimension - Hole Size mm
- 13 mm
- Dimension - D inch
- 1.12 in
- Wire Rope Length
- 2.74 in
Description
Compression Lug, Barrel Size Long, Color Code Brown, Die Code 10, Tongue Angle Straight, Tongue Width 0.81 in, For Conductor Material Copper, For Stud Size 1/2 in, For Stranded Copper Wire Size - Minimum 2 AWG, For Stranded Copper Wire Size - Maximum 2 AWG, Inspection Hole No, Hole Center to Center Not Applicable, Material Copper, Max. Operating Temp. 194 Degrees F, Maximum Voltage 35 kV, Termination Style Crimp, Standards CSA Certified, UL 486A-486B, UL Listed, Number of Holes 1
