Shop BURNDY

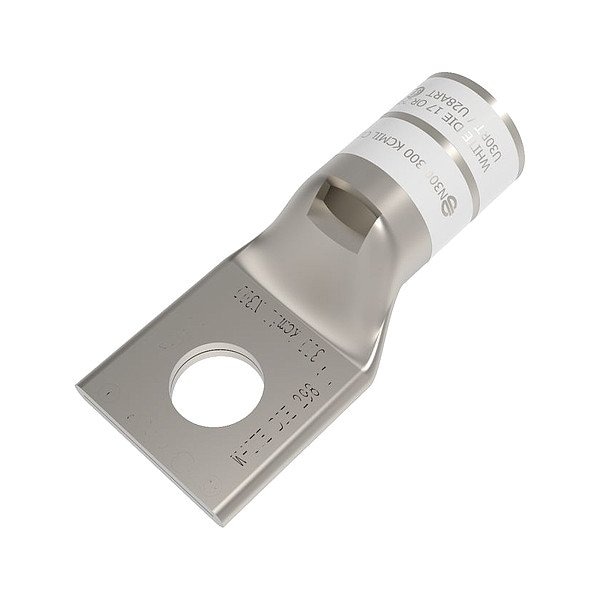

Compression Terminal

  • Mfr # YA30L

  • Zoro # G816451758

product price:  $23.29
/ea

Key Features

Tongue Thickness
0.16 in
Overall Width
1.2 in
Hole Size
0.52 in
Tongue Angle
Straight
Standards
CSA Certified, UL Listed
See all product information
Get a 10% off coupon
Free 30-day returns Return Policy
Get 30 days to pay with Net 30 Apply Now
Unlock tax-exempt savings Add Tax Exemption

Specifications

Product Information

MFR #
YA30L
Zoro #
G816451758
UPC #
781810504857
Country of Origin
United States

Dimensions

Tongue Thickness
0.16 in
Overall Width
1.2 in
Hole Size
0.52 in
Barrel Outside Diameter
0.81 in
For Stranded Copper Wire Size - Maximum
300 kcmil
Overall Length
2.69 in
Tongue Width
1.2 in
Barrel Size
Standard
For Stranded Copper Wire Size - Minimum
300 kcmil
Strip Length
1 1/16 in
For Stud Size
1/2 in

Details

Item
Compression Terminal
Tongue Angle
Straight
Standards
CSA Certified, UL Listed
For Conductor Material
Copper
Barrel Style
Chamfered
Termination Style
Crimp
Color Code
White
Special Features
Connectors are Clearly Marked with Stamping and Barrel Color Coding, Electro-Tin Plated Unless Otherwise Specified to Reduce Galvanic Corrosion (Bimetallic) and Resist Corrosive Elements
Die Code
17
Inspection Hole
Yes
Maximum Voltage
35 kV
Material
Copper
Hole Center to End
0.53 in
Contact Finish
Tin
For Wire Type
Stranded
Tongue Style
Standard

Description

Compression Terminal
