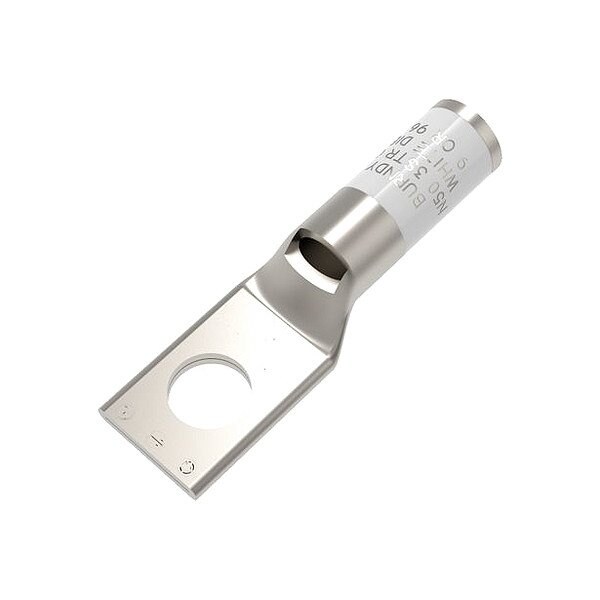

Compression Terminal
Mfr # YA3CL
Zoro # G016437514
product price:Â $12.69
/eaKey Features
Tongue Width
0.55 in
Barrel Outside Diameter
0.38 in
Barrel Size
Standard
Barrel Style
Chamfered
Termination Style
Crimp
Get a 10% off coupon
Free 30-day returns Return Policy
Get 30 days to pay with Net 30 Apply Now
Unlock tax-exempt savings Add Tax Exemption
Specifications
Product Information
MFR #
YA3CL
Zoro #
G016437514
UPC #
781810501252
Country of Origin
United States
Dimensions
Tongue Width
0.55 in
Barrel Outside Diameter
0.38 in
Barrel Size
Standard
Hole Size
0.38 in
For Stranded Copper Wire Size - Maximum
3 AWG
Overall Width
0.55 in
For Stranded Copper Wire Size - Minimum
3 AWG
Tongue Thickness
0.09 in
Strip Length
15/16 in
For Stud Size
5/16 in
Overall Length
1.88 in
Description
Compression Lug, Barrel Size Standard, Color Code White, Die Code 9, Tongue Angle Straight, Tongue Width 0.55 in, For Conductor Material Copper, For Stud Size 5/16 in, For Stranded Copper Wire Size - Minimum 3 AWG, For Stranded Copper Wire Size - Maximum 3 AWG, Inspection Hole Yes, Hole Center to Center Not Applicable, Material Copper, Maximum Operating Temperature 194 Degrees F, Maximum Voltage 35 kV, Termination Style Crimp, Standards CSA Certified, UL Listed, Number of Holes 1
