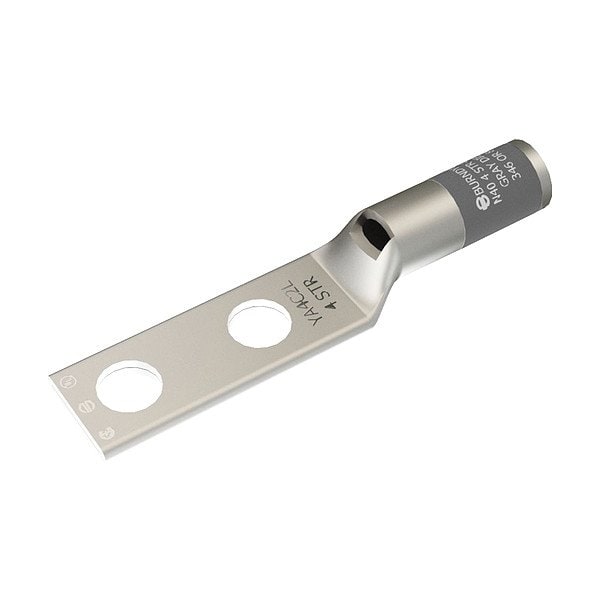

Compression Terminal
Mfr # YA4C2L
Zoro # G721692888
product price:Â
$
11.29
/ea
Key Features
For Stud Size
1/2 in
Tongue Angle
Straight
For Stranded Copper Wire Size - Maximum
4 AWG
Strip Length
7/8 in
Overall Width
0.5 in
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval.
Terms apply.
Get 10% off your order
Sign up for our email list and receive your promo code via email.
Specifications
Product Information
- MFR #
- YA4C2L
- Zoro #
- G721692888
- UPC #
- 781810501450
- Country of Origin
- United States
Dimensions
- For Stud Size
- 1/2 in
- For Stranded Copper Wire Size - Maximum
- 4 AWG
- Strip Length
- 7/8 in
- Overall Width
- 0.5 in
- Barrel Outside Diameter
- 0.34 in
- Wire Rope Length
- 2.3 in
- Tongue Thickness
- 0.09 in
- Tongue Width
- 0.5 in
- For Stranded Copper Wire Size - Minimum
- 4 AWG
- Barrel Size
- Standard
- Hole Size
- 0.56 in
- Overall Length
- 2.3 in
- Length
- 2.3 in
Description
Compression Lug, Barrel Size Standard, Color Code Gray, Die Code 346, 8, Tongue Angle Straight, Tongue Width 0.5 in, For Conductor Material Copper, For Stud Size 1/2 in, For Stranded Copper Wire Size - Minimum 4 AWG, For Stranded Copper Wire Size - Maximum 4 AWG, Inspection Hole Yes, Hole Center to Center 0.625 in, Material Copper, Maximum Operating Temperature 194 Degrees F, Maximum Voltage 35 kV, Termination Style Crimp, Standards CSA Certified, UL Listed, Number of Holes 2
