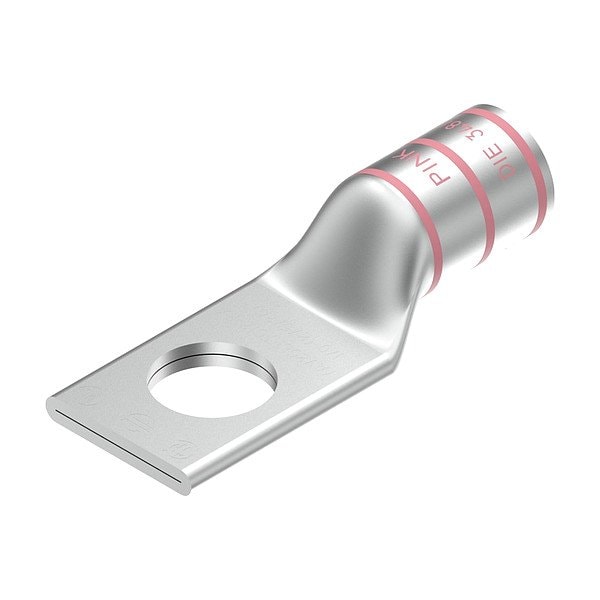

Compression Terminal
- Mfr # YAV25LTC14FX
- Zoro # G216451754
product price:Â
$
14.99
/ea
Key Features
Overall Length
1.75 in
Barrel Size
Standard
Barrel Outside Diameter
0.56 in
Strip Length
11/16 in
Maximum Voltage
35 kV
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval.
Terms apply.
Get 10% off your order
Sign up for our email list and receive your promo code via email.
Specifications
Details
- MFR #
- YAV25LTC14FX
- Zoro #
- G216451754
- UPC #
- 781810022702
- Country of Origin
- United States
- Item
- Compression Terminal
- Maximum Voltage
- 35 kV
- Material
- Copper
- Inspection Hole
- Yes
- Contact Finish
- Tin
- Termination Style
- Crimp
- Hole Center to End
- 0.31 in
- For Wire Type
- Stranded
- Die Code
- 12
- Standards
- CSA Certified, UL Listed
- Color Code
- Pink
- Special Features
- Connectors are Clearly Marked with Stamping and Barrel Color Coding, Electro-Tin Plated Unless Otherwise Specified to Reduce Galvanic Corrosion (Bimetallic) and Resist Corrosive Elements
- Tongue Style
- Standard
- For Conductor Material
- Copper
- Tongue Angle
- Straight
- Barrel Style
- Chamfered
- Shell Material
- Copper
- Traction Material
- Copper
Dimensions
- Overall Length
- 1.75 in
- Barrel Size
- Standard
- Barrel Outside Diameter
- 0.56 in
- Strip Length
- 11/16 in
- Hole Size
- 0.27 in
- Overall Width
- 0.83 in
- Tongue Width
- 0.83 in
- Tongue Thickness
- 0.12 in
- For Stranded Copper Wire Size - Minimum
- 1/0 AWG
- For Stranded Copper Wire Size - Maximum
- 1/0 AWG
- For Stud Size
- 1/4 in
- Wire Rope Length
- 1.75 in
- Length
- 1.75 in
Description
Compression Lug, Barrel Size Standard, Color Code Pink, Die Code 12, Tongue Angle Straight, Tongue Width 0.83 in, For Conductor Material Copper, For Stud Size 1/4 in, For Stranded Copper Wire Size - Minimum 1/0 AWG, For Stranded Copper Wire Size - Maximum 1/0 AWG, Inspection Hole Yes, Hole Center to Center Not Applicable, Material Copper, Maximum Operating Temperature 194 Degrees F, Maximum Voltage 35 kV, Termination Style Crimp, Standards CSA Certified, UL Listed, Number of Holes 1
