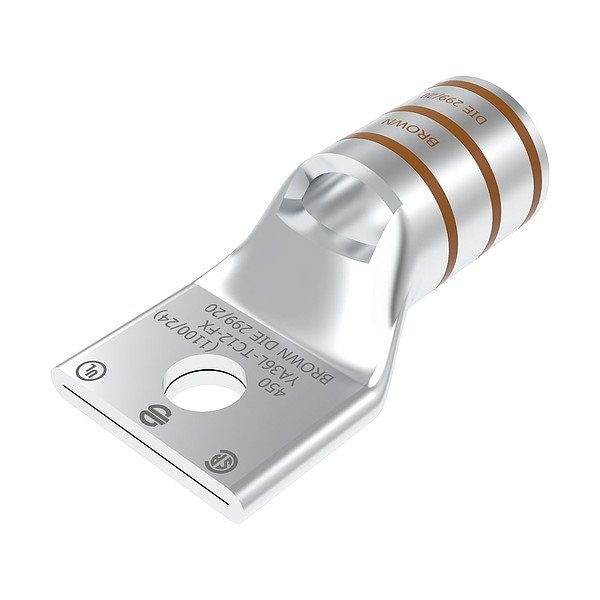

Compression Terminal
Mfr # YA36LTC12FX
Zoro # G116557747
product price:Â
$
73.39
/ea
Key Features
Termination Style
Crimp
Material
Copper
For Stranded Copper Wire Size - Maximum
500 kcmil
Special Features
Connectors are Clearly Marked with Stamping and Barrel Color Coding, Electro-Tin Plated Unless Otherwise Specified to Reduce Galvanic Corrosion (Bimetallic) and Resist Corrosive Elements
Barrel Size
Standard
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval.
Terms apply.
Get 10% off your order
Sign up for our email list and receive your promo code via email.
Specifications
Details
- MFR #
- YA36LTC12FX
- Zoro #
- G116557747
- UPC #
- 781810021514
- Country of Origin
- United States
- Item
- Compression Lug
- Termination Style
- Crimp
- Material
- Copper
- Special Features
- Connectors are Clearly Marked with Stamping and Barrel Color Coding, Electro-Tin Plated Unless Otherwise Specified to Reduce Galvanic Corrosion (Bimetallic) and Resist Corrosive Elements
- Tongue Angle
- Straight
- Maximum Voltage
- 35 kV
- For Conductor Material
- Copper
- Color Code
- Brown
- Contact Finish
- Tin
- Inspection Hole
- Yes
- Hole Center to End
- 0.53 in
- Standards
- CSA Certified, UL Listed
- For Wire Type
- Stranded
- Barrel Style
- Chamfered
- Die Code
- 20, 299
- Tongue Style
- Standard
Description
Compression Lug, Barrel Size Standard, Color Code Brown, Die Code 20, 299, Tongue Angle Straight, Tongue Width 1.74 in, For Conductor Material Copper, For Stud Size 1/2 in, For Stranded Copper Wire Size - Minimum 500 kcmil, For Stranded Copper Wire Size - Maximum 500 kcmil, Inspection Hole Yes, Hole Center to Center Not Applicable, Material Copper, Maximum Operating Temperature 194 Degrees F, Maximum Voltage 35 kV, Termination Style Crimp, Standards CSA Certified, UL Listed, Number of Holes 1
