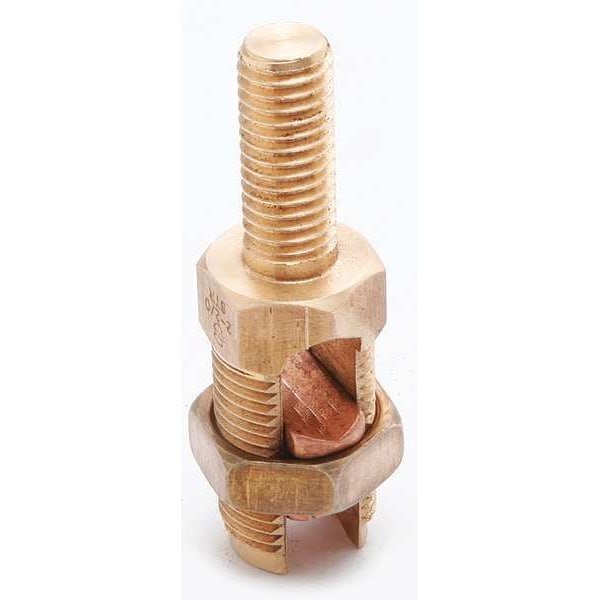

Burndy Copper Cable to Post/Flat, 10 sol K2C23 - main

Copper Cable to Post/Flat, 10 sol

  • Mfr # K2C23

  • Zoro # G4695512

product price: $45.69
/ea

Key Features

Material
Bronze
Standards
UL Listed, UL Listed-Direct Burial, UL467
Type - Grounding Connector
Mechanical
Number of Wires - Grounding
1
Thread Size - Grounding Stud
3/8 in 16
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
K2C23
Zoro #
G4695512
UPC #
781810257203
Country of Origin
United States

Dimensions

Thread Size - Grounding Stud
3/8 in 16
Conductor Size
8 to 2 AWG STR
Stud Length
15/32"
Thread Size
3/8"-16
Length - Grounding Stud
15/32 in
Wire Size - Grounding
10 to 1 AWG Solid, 8 to 2 AWG Stranded
Grounding Wire Size
10 to 1 AWG SOL, 8 to 2 AWG STR
Overall Length
2 3/16 in
Overall Width
5/8 in
Dimension - Body Width inch
0.62 in
Dimension - Nut Width inch
0.81 in
Dimension - P inch
0.32 in
Dimension - Length Overall inch
2.19 in
Dimension - Bolt Size fraction
44993
Dimension - B Length inch
0.46 in
Dimension - Height inch
1.34 in
Dimension - B Length fraction
15/32 in
Dimension - D inch
0.62 in
Dimension - Height fraction
1
Conductor - Copper Str Size
8 AWG;7 AWG;6 AWG;5 AWG;4 AWG;3 AWG;2 AWG
Conductor - Copper Str Size Range
2 AWG - 8 AWG
Dimension - L Length Overall mm
56 mm
Conductor - Copper Solid Size
10 AWG;9 AWG;8 AWG;7 AWG;6 AWG;5 AWG;4 AWG;3 AWG;2 AWG;1 AWG
Conductor - Copper Solid Size Range
1 AWG - 10 AWG
Dimension - Threads per inch
16
Dimension - Width inch
34 mm

Description

Grounding Split Bolt Connector with Stud, Connector Material Leaded Bronze Alloy, Connector Type Mechanical, Grounding Wire Size 10 to 1 AWG SOL, 8 to 2 AWG STR, Number of Wires - Grounding 1, Overall Length 2 3/16 in, Thread Size 3/8 In.-16, Standards UL Listed, UL Listed-Direct Burial, UL467, Conductor Size 8 to 2 AWG STR, Conductor Type Run, Installation Torque 80 in-lb, Overall Width 5/8 in, K2C, KC
