  11. Copper Cable to Post/Flat, 10 sol

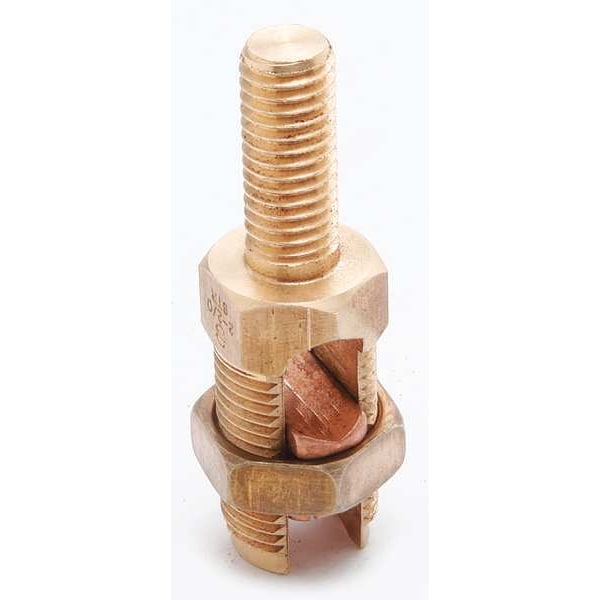

Burndy Copper Cable to Post/Flat, 10 sol K2C23B1 - main

Copper Cable to Post/Flat, 10 sol

  • Mfr # K2C23B1

  • Zoro # G4685712

product price: $45.15
/ea
Sold in multiples of 50 for $2,257.50

Key Features

Material
Bronze
Standards
UL Listed, UL Listed-Direct Burial, UL467
Material of Construction
Leaded Bronze alloy
Wire Size - Grounding
10 to 1 AWG Solid, 8 to 2 AWG Stranded
Material - Grounding Connector
Leaded Bronze Alloy
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
K2C23B1
Zoro #
G4685712
UPC #
781810257258
Country of Origin
United States

Dimensions

Wire Size - Grounding
10 to 1 AWG Solid, 8 to 2 AWG Stranded
Thread Size
3/8"-16
Conductor Size
8 to 2 AWG STR
Thread Size - Grounding Stud
3/8 in 16
Stud Length
31/32"
Length - Grounding Stud
31/32 in
Grounding Wire Size
10 to 1 AWG SOL, 8 to 2 AWG STR
Overall Length
2 1/2 in
Overall Width
5/8 in
Dimension - Length Overall inch
2.47 in
Dimension - Nut Width inch
0.81 in
Dimension - Threads per inch
16
Dimension - Height fraction
1
Dimension - Bolt Size fraction
44993
Dimension - B Length inch
0.97 in
Dimension - P inch
0.32 in
Dimension - L Length Overall mm
63 mm
Conductor - Copper Solid Size Range
10 AWG-1 AWG
Conductor - Copper Str Size Range
8 AWG-2 AWG
Dimension - Body Width inch
0.62 in
Dimension - D inch
1.12 in
Dimension - B Length fraction
31/32 in
Dimension - Height inch
1.05 in
Conductor - Copper Str Size
8 AWG;7 AWG;6 AWG;5 AWG;4 AWG;3 AWG;2 AWG
Conductor - Copper Solid Size
10 AWG;9 AWG;8 AWG;7 AWG;6 AWG;5 AWG;4 AWG;3 AWG;2 AWG;1 AWG

Details

Item
Grounding Split Bolt Connector with Stud
Material
Bronze
Standards
UL Listed, UL Listed-Direct Burial, UL467
Material of Construction
Leaded Bronze alloy
Material - Grounding Connector
Leaded Bronze Alloy
Type - Grounding Connector
Mechanical
Number of Wires - Grounding
1
Item - Grounding Connector
Grounding Split Bolt Connector with Stud
Connector Material
Leaded Bronze Alloy
Conductor Type
Run
Installation Torque
280 in-lb
Connector Type
Mechanical
Series
K2C, KC
Type
KC and K2C Series
UL Listed
Yes
Plating Type
Unplated
Physical Attribute - Number of Conductors Accommodated Total
2
Certification - UL Listed Direct Burial
Yes
Standards - Industry Standards Met
UL467
Application
For Direct Burial Applications And Used To Ground One Or Two Cables To Steel Structures, Fence Posts, Transformers, Also Used To Tap One Or Two Cables From Bus Bar
Stud Installation Torque inch pounds
280 LBS/in
Industry Standard(s)
UL467
Trade Name
SERVIT POSTâ„¢

Description

Grounding Split Bolt Connector with Stud, Connector Material Leaded Bronze Alloy, Connector Type Mechanical, Grounding Wire Size 10 to 1 AWG SOL, 8 to 2 AWG STR, Number of Wires - Grounding 1, Overall Length 2 1/2 in, Thread Size 3/8 In.-16, Standards UL Listed, UL Listed-Direct Burial, UL467, Conductor Size 8 to 2 AWG STR, Conductor Type Run, Installation Torque 280 in-lb, Overall Width 5/8 in, K2C, KC
