Dieless C-Head 11T, w/(2) Batteries
- Mfr # PAT444SLI
- Zoro # G306580647
Key Features
Specifications
Product Information
- MFR #
- PAT444SLI
- Zoro #
- G306580647
- UPC #
- 621945684683
- Country of Origin
- United States
Dimensions
- Maximum Compatible Wire/Cable Diameter
- ACSR: #4 AWG-556.5 kcmil, Aluminum: #4 AWG-1000 kcmil, Copper: #4 AWG-1000 kcmil
- Overall Height
- 16.9 in
- Manufacturer Warranty Length
- 3 yr Battery and Charger, 5 yr Limited
- Overall Width
- 13.7 in
- Overall Length
- 3.2 in
- Wire Rope Length
- 3.2 in
- Length
- 3.2 in
- Fits Chest Size
- 355 Degrees Head Rotation, 4 AWG to 1,000 Kcmil Copper and Aluminum, 4 AWG-556.5 Kcmil ACSR, AAC, AAAC, ACAR, C-Head for Easy Access and Increased Flexibility, Dieless System with Range Taking Capability, Ergonomically Balanced
Description

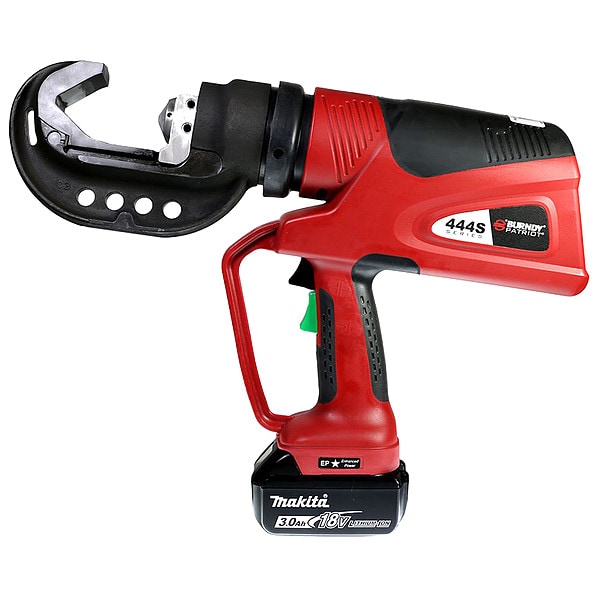

The Burndy PAT444SLI is a cordless, battery-powered dieless crimping tool from the PATRIOT PAT444S series, delivering 11 tons of crimping force through an open C-head. The C-head design is built for easy access around the conductor and added flexibility in tight terminations, and the dieless, range-taking system covers a wide conductor range without changing dies.
The tool crimps copper and aluminum from 4 AWG up to 1,000 kcmil, and ACSR, AAC, AAAC, and ACAR conductors from 4 AWG up to 556.5 kcmil. The head rotates 355 degrees for positioning in confined spaces, and the tool is insulated and rated for UL 486A-B connections using Burndy connectors. It is built around an ergonomically balanced pistol-grip body.
Powered by the Makita 18V LXT battery platform, the kit ships with the crimper, two 3.0 Ah 18V lithium-ion batteries, a charger, a lanyard, and a hard carrying case.
Key Features:
- MFR #: PAT444SLI · Brand: Burndy · Series: PATRIOT, PAT444S
- Type: Dieless C-head crimper · Head style: C-head · Power: Cordless
- Crimping force: 11 ton · Voltage: 18V
- Crimp head: Dieless, range-taking (0 dies required)
- Copper / aluminum capacity: 4 AWG–1,000 kcmil
- ACSR / AAC / AAAC / ACAR capacity: 4 AWG–556.5 kcmil
- Head rotation: 355° · Handle: pistol grip, ergonomically balanced · Insulated: Yes
- Battery platform: Makita 18V LXT · Batteries: (2) 3.0 Ah 18V Li-ion included
- Includes: crimper, (2) batteries, charger, lanyard, hard case
- UL 486A-B connection capability: Burndy
