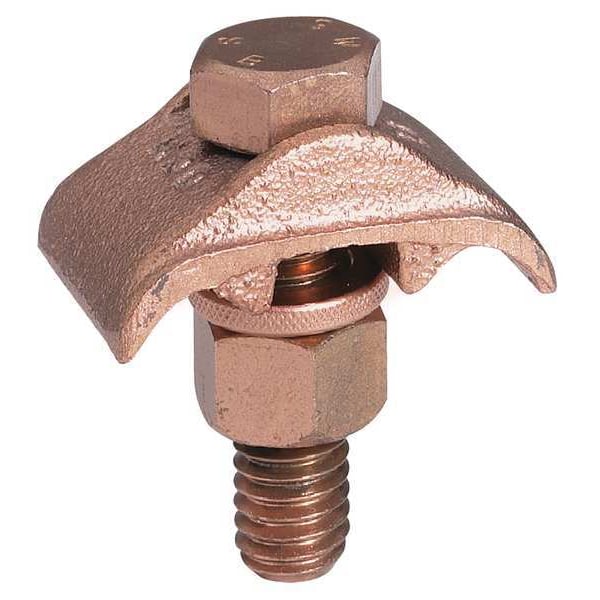

Burndy Ground Connector, 4AWG, 1.74In GCM26 - main

Ground Connector, 4AWG, 1.74In

  • Mfr # GCM26

  • Zoro # G4662481

product price: $48.19
/ea
Sold in multiples of 25 for $1,204.75

Key Features

Item - Grounding Connector
Grounding Connector
Type
COMMERCIAL
Type - Grounding Connector
Mechanical
Wire Size - Grounding
4 to 2/0 AWG
Material
Copper
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
GCM26
Zoro #
G4662481
UPC #
781810231555
Country of Origin
Mexico

Dimensions

Wire Size - Grounding
4 to 2/0 AWG
Conductor Size
2/0 AWG to 4 AWG
Grounding Wire Size
4 to 2/0 AWG SOL, 4 to 2/0 AWG STR
For Maximum Ground Conductor Wire Size
2/0 AWG STR
Overall Length
1 in
For Minimum Ground Conductor Wire Size
4 AWG SOL
Overall Height
1 3/4 in
Overall Width
1 3/8 in
Dimension - Width mm
35 mm
Dimension - Height inch
1.74 in
Conductor - Copper Solid Size Range
4 AWG-2/0 AWG
Dimension - Width fraction
1-1/3 in
Dimension - Length Overall inch
1.00 in
Dimension - L Length Overall mm
25 mm
Dimension - Width inch
1.36 in
Conductor - Copper Str Size Range
4 AWG-2/0 AWG
Conductor - Copper Str Size
4 AWG;3 AWG;2 AWG;1 AWG;1/0 ;2/0 AWG
Conductor - Copper Solid Size
4 AWG;3 AWG;2 AWG;1 AWG;1/0 AWG;2/0 AWG

Details

Item
Mechanical Lug
Item - Grounding Connector
Grounding Connector
Type
COMMERCIAL
Type - Grounding Connector
Mechanical
Material
Copper
Standards
UL Listed Direct Burial, UL467
Grounding Wires Connected To
1/4 in Bar
Material - Grounding Connector
Copper Alloy
Number of Wires - Grounding
2
Material of Construction
Copper Alloy
Accessory Type
Grounding Connector
For Use With
Copper Conductors, Flat Bar
Torque
240 in-lb
Description/Special Features
Clamps One Cable Directly to Bar, Direct Burial
Application
For Joining A Wide Range Of Two Copper Parallel Cables And Direct Burial In Concrete Or Ground
Plated
N
Physical Attribute - Screw Type
Hexagonal Bolt
Plating Type
Unplated
Industry Standard(s)
UL467
Certification - UL Listed Direct Burial
Yes
Certification - CSA Approved
No
Installation Torque Recommended in-lb
240 lb-in
Material Type - Screw
DURIUM™ Silicon Bronze
UL Listed
Yes

Description

Grounding Connector, Grounding Wire Size 4 to 2/0 AWG SOL, 4 to 2/0 AWG STR, Material Copper, Number of Wires - Grounding 2, Description/Special Features Clamps One Cable Directly to Bar, Direct Burial, For Maximum Ground Conductor Wire Size 2/0 AWG STR, For Minimum Ground Conductor Wire Size 4 AWG SOL, For Use With Copper Conductors, Flat Bar, Grounding Wires Connected To 1/4 in Bar, Standards UL Listed Direct Burial, UL467, Type - Grounding Connector Mechanical
