  11. Insulated Multitap Connector, 1.51 In. L
Shop All Mechanical Lugs
Burndy

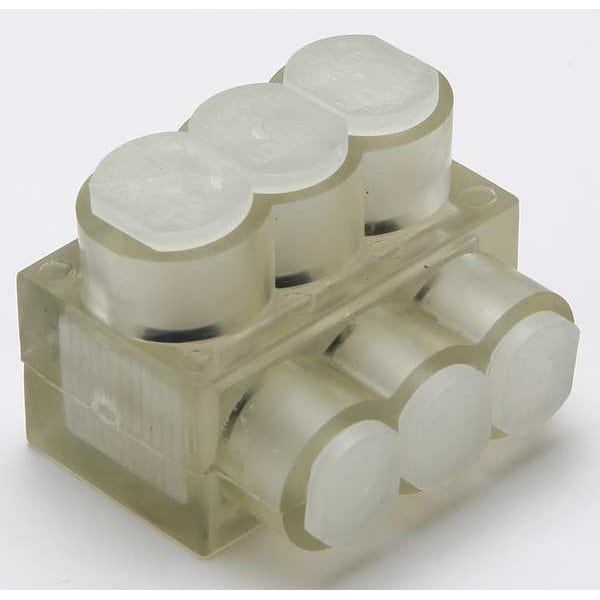

Insulated Multitap Connector, 1.51 In. L

original price: $35.68
30% off
new price: $24.79
/ea
Free Shipping on orders over $50
Free 30-Day Returns

Key Features

  • Connector Type Single-Sided Entry
  • No. of Ports 3
  • Min. Conductor Size 14 AWG
  • Max. Conductor Size 4 AWG
  • Insulation Material Plastisol
See all product information

Product Information

Dimensions

Min. Conductor Size 14 AWG
Max. Conductor Size 4 AWG
Stud Size 1/8 in
Length 1.51 in
Width 1.25 in
Length (Straight Wireway) 1.51 in
Strip Length 5/8 in
For Stranded Copper Wire Size - Maximum 4 AWG
Hex Size 1/8 in
For Stranded Copper Wire Size - Minimum 14 AWG
For Wire Size 10 AWG, 12 AWG, 14 AWG, 4 AWG, 6 AWG, 8 AWG
Overall Width 1.25 in
Overall Length 1.51 in

Details

Item Insulated Multitap Connector
Connector Type Single-Sided Entry
No. of Ports 3
Insulation Material Plastisol
Screw Material Steel
Direct Burial Rated No
Max. Voltage 600V AC/DC
Body Material Aluminum
Head Style Hex
Standards CSA Approved, UL 486A, UL 486B, UL Listed
Number of Ports 3
Maximum Operating Temperature 194 Degrees F
Color Clear
Maximum Voltage 600 V
Torque 45 in-lb
Special Features Insulated
Tap Shape L
For Conductor Material Aluminum, Copper
Current 85 A
Finish Unplated
Compatible with Product Type Code Conductor
RoHS Compliant Yes

Description

Insulated Multitap Connector, Body Material Aluminum, Color Clear, Finish Unplated, For Conductor Material Aluminum, Copper, For Stranded Copper Wire Size - Minimum 14 AWG, For Stranded Copper Wire Size - Maximum 4 AWG, Head Style Hex, Hex Size 1/8 in, Insulation Material Plastisol, Maximum Operating Temperature 194 Degrees F, Maximum Voltage 600 V, Mounting Hole Size Not Applicable, Number of Ports 3, RoHS Compliant Yes, Standards CSA Approved, UL 486A, UL 486B, UL Listed
