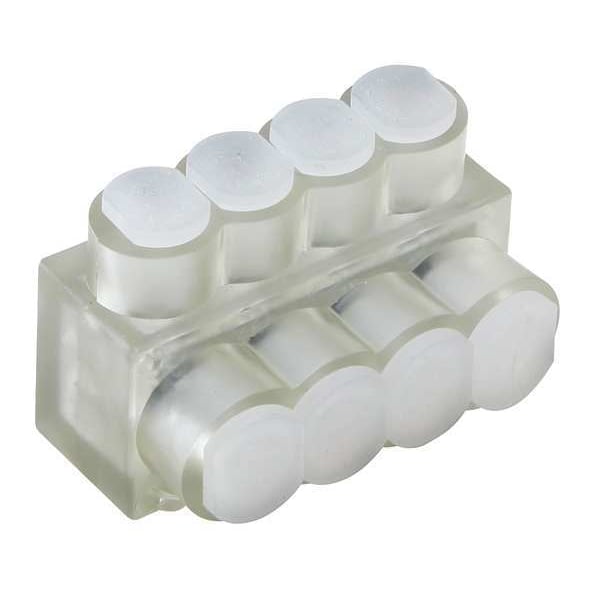

Insulated Multitap Connector, 1.95 In. L

product price: $28.99
/ea
Free Shipping on orders over $50
Free 30-Day Returns

Key Features

  • Connector Type Single-Sided Entry
  • No. of Ports 4
  • Min. Conductor Size 14 AWG
  • Max. Conductor Size 4 AWG
  • Insulation Material Plastisol
See all product information

Product Information

Dimensions

Min. Conductor Size 14 AWG
Max. Conductor Size 4 AWG
Stud Size 5/16 in
Length 1.95 in
Width 1.25 in
Length (Straight Wireway) 1.95 in
Overall Length 1.95 in
For Wire Size 10 AWG, 12 AWG, 14 AWG, 4 AWG, 6 AWG, 8 AWG
Hex Size 1/8 in
For Stranded Copper Wire Size - Maximum 4 AWG
Overall Width 1.25 in
For Stranded Copper Wire Size - Minimum 14 AWG
Strip Length 5/8 in

Details

Item Insulated Multitap Connector
Connector Type Single-Sided Entry
No. of Ports 4
Insulation Material Plastisol
Body Material Aluminum
Head Style Hex
Max. Voltage 600V AC/DC
Screw Material Steel
Standards CSA Approved, UL 486A, UL 486B, UL Listed
Direct Burial Rated No
For Conductor Material Aluminum, Copper
Compatible with Product Type Code Conductor
RoHS Compliant Yes
Maximum Voltage 600 V
Finish Unplated
Tap Shape L
Number of Ports 4
Current 85 A
Maximum Operating Temperature 194 Degrees F
Torque 45 in-lb
Color Clear
Special Features Insulated

Description

Insulated Multitap Connector, Body Material Aluminum, Color Clear, Finish Unplated, For Conductor Material Aluminum, Copper, For Stranded Copper Wire Size - Minimum 14 AWG, For Stranded Copper Wire Size - Maximum 4 AWG, Head Style Hex, Hex Size 1/8 in, Insulation Material Plastisol, Maximum Operating Temperature 194 Degrees F, Maximum Voltage 600 V, Mounting Hole Size Not Applicable, Number of Ports 4, RoHS Compliant Yes, Standards CSA Approved, UL 486A, UL 486B, UL Listed
