Shop All Mechanical Lugs
Burndy

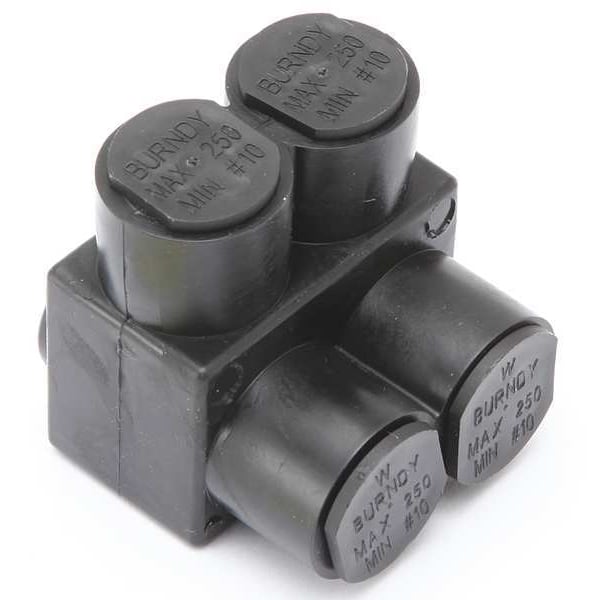

Insulated Multitap Connector, 2.13 In. L
Mfr # 1PL2502
Zoro # G4659523
$57.65
Free Shipping on orders over $50
after youÂ
Free 30-Day Returns
Key Features
- Connector Type Single-Sided Entry
- No. of Ports 2
- Min. Conductor Size 10 AWG
- Max. Conductor Size 250 kcmil
- Stud Size 5/16 in
Product Information
- Brand Burndy
- MFR # 1PL2502
- Zoro # G4659523
- UPC # 781810555156
- Country of Origin United States
- Category Mechanical Lugs
Dimensions
Min. Conductor Size | 10 AWG |
Max. Conductor Size | 250 kcmil |
Stud Size | 5/16 in |
Length | 2.13 in |
Width | 2.07 in |
Length (Straight Wireway) | 2.13 in |
Hex Size | 5/16 in |
For Stranded Copper Wire Size - Maximum | 250 kcmil |
For Stranded Copper Wire Size - Minimum | 10 AWG |
Overall Width | 2.07 in |
Overall Length | 2.28 in |
For Wire Size | 1 AWG, 1/0 AWG, 10 AWG, 2 AWG, 2/0 AWG, 250 kcmil, 3/0 AWG, 4 AWG, 4/0 AWG, 6 AWG, 8 AWG |
Details
Description
Insulated Multitap Connector, Body Material Aluminum, Color Black, Finish Unplated, For Conductor Material Aluminum, Copper, For Stranded Copper Wire Size - Minimum 10 AWG, For Stranded Copper Wire Size - Maximum 250 kcmil, Head Style Hex, Hex Size 5/16 in, Insulation Material Plastisol, Maximum Operating Temperature 194 Degrees F, Maximum Voltage 600 V, Mounting Hole Size Not Applicable, Number of Ports 2, RoHS Compliant Yes, Standards UL Listed, Compatible with Product Type Code Conductor
