  11. Insulated Multitap Connector, 2.19 In. L

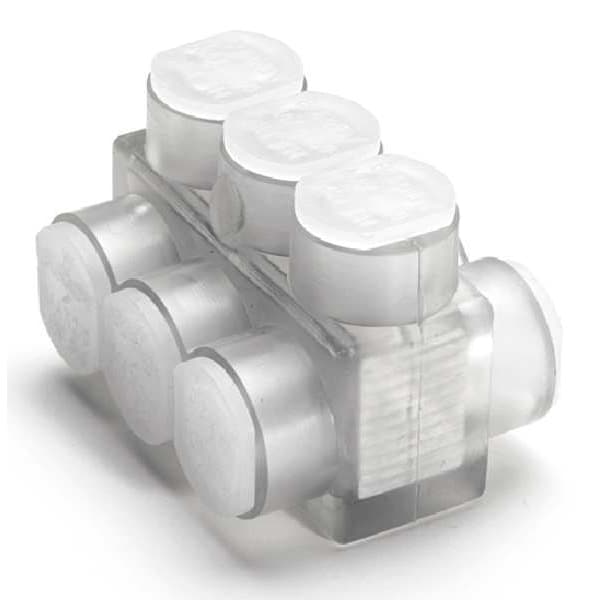

Burndy Insulated Multitap Connector, 2.19 In. L BIBD2/03 - main

Insulated Multitap Connector, 2.19 In. L

  • Mfr # BIBD2/03

  • Zoro # G4682824

product price: $34.99
/ea

Key Features

Connector Type
Double-Sided Entry
For Wire Size
2/0 AWG
Number of Ports
3
For Conductor Material
Aluminum, Copper
Body Material
Aluminum
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
BIBD2/03
Zoro #
G4682824
UPC #
781810554975
Country of Origin
United States

Dimensions

For Wire Size
2/0 AWG
Hex Size
3/16 in
Stud Size
3/16 in
Length
2.19 in
Max. Conductor Size
2/0 AWG
Width
1.56 in
Min. Conductor Size
14 AWG
Length (Straight Wireway)
2.19 in
Overall Length
2.19 in
For Stranded Copper Wire Size - Maximum
2/0 AWG
For Stranded Copper Wire Size - Minimum
14 AWG
Overall Width
1.56 in
Conductor Size
14-2/0 AWG
Dimension - Height fraction
1.375 in
Conductor - Copper Str Size Range
14 AWG-2/0 Str
Dimension - L Length Overall mm
56 mm
Conductor - AL Str Size Range
8 AWG-2/0 AWG
Dimension - Width fraction
1-14/25 in
Dimension - Height inch
1.38 in
Conductor - Copper Str Size
14 AWG;12 AWG;10 AWG;9 AWG;8 AWG;7 AWG;6 AWG;5 AWG;4 AWG;3 AWG;2 AWG;1 AWG;1/0 ;2/0 Str
Dimension - Width mm
40 mm
Dimension - Width inch
1.56 in
Dimension - Length Overall inch
2.19 in
Conductor - AL Str Size
8 AWG;6 AWG;4 AWG;3 AWG;2 AWG;1 AWG;1/0 AWG;2/0 AWG

Details

Item
Insulated Multitap Connector
Connector Type
Double-Sided Entry
Number of Ports
3
For Conductor Material
Aluminum, Copper
Body Material
Aluminum
Insulation Material
Plastisol
Direct Burial Rated
No
Head Style
Hex
Finish
Unplated
Color
Clear
Maximum Operating Temperature
194 Degrees F
Standards
CSA Approved, UL 486A, UL 486B, UL Listed
Max. Voltage
600V AC/DC
Screw Material
Aluminum
No. of Ports
3
Material
Aluminum
Current
175 A
Special Features
Insulated
Compatible with Product Type
Code Conductor
Maximum Voltage
600 V
Tap Shape
T
RoHS Compliant
Yes
Type
BIBD, Multi-Port
Hex Key
45001
Voltage - Maximum
600 V
UL Listed
Yes
Material - Hardware
Aluminum
Application
For Indoor Use Only, Copper Or Stranded Aluminum
Insulation
Y
Temperature Rating
194
Standards - Industry Standards Met
UL468A-468B
Certification - CSA Approved
Yes
Physical Attribute - Number of Screws
3
Trade Name
UNITAPâ„¢
Rating - Minimum Voltage
600
Plated
N
Physical Attribute - Screw Type
Allen
Plating Type
Unplated
Conductor Type
AL C Str-SizeCU C Str-Size
Industry Standard(s)
UL468A-468B
Insulation Type
Plastisol
Certification - UL Listed Direct Burial
No

Description

Multitap Connector, Body Material Aluminum, Color Clear, Finish Unplated, For Conductor Material Aluminum, Copper, For Stranded Copper Wire Size - Minimum 14 AWG, For Stranded Copper Wire Size - Maximum 2/0 AWG, Head Style Hex, Hex Size 3/16 in, Insulation Material Plastisol, Maximum Operating Temperature 194 Degrees F, Maximum Voltage 600 V, Mounting Hole Size Not Applicable, Number of Ports 3, UL 94 Flammability Rating V-0, RoHS Compliant Yes
