  10. /
  11. Insulated Multitap Connector, 2.91 In. L
Shop All Mechanical Lugs
Burndy

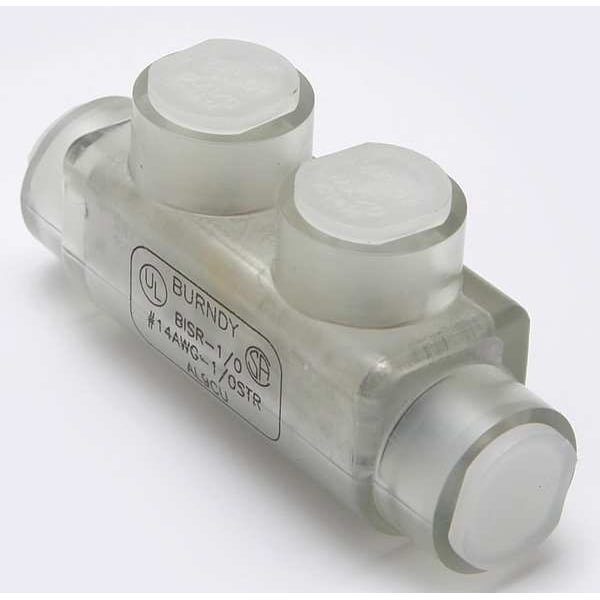

Insulated Multitap Connector, 2.91 In. L

product price: $24.99
/ea
Free Shipping on orders over $50
Free 30-Day Returns

Key Features

  • Connector Type Double-Sided Entry
  • No. of Ports 2
  • Min. Conductor Size 14 AWG
  • Max. Conductor Size 1/0 AWG
  • Stud Size 3/16 in
See all product information

Product Information

Dimensions

Min. Conductor Size 14 AWG
Max. Conductor Size 1/0 AWG
Stud Size 3/16 in
Length 2.91 in
Width 1.38 in
Length (Straight Wireway) 2.91 in
For Stranded Copper Wire Size - Maximum 1/0 AWG
Strip Length 1 in
Overall Width 0.91 in
For Wire Size 1 AWG, 1/0 AWG, 10 AWG, 12 AWG, 14 AWG, 2 AWG, 4 AWG, 6 AWG, 8 AWG
Overall Length 2.91 in
Hex Size 3/16 in
For Stranded Copper Wire Size - Minimum 14 AWG

Details

Item Insulated Multitap Connector
Connector Type Double-Sided Entry
No. of Ports 2
Insulation Material Plastisol
Head Style Hex
Direct Burial Rated No
Body Material Aluminum
Screw Material Aluminum
Max. Voltage 600V AC/DC
Standards CSA Approved, UL 486A, UL 486B, UL Listed
Tap Shape T
RoHS Compliant Yes
Torque 50 in-lb
Special Features Eliminates Taping, Insulated, Lowers Installation Costs, Oxide Inhibitor Inhibits Moisture and Contaminants From Entering the Contact Area, Saves Time
Finish Unplated
Maximum Voltage 600 V
Maximum Operating Temperature 194 Degrees F
Compatible with Product Type Code Conductor
For Conductor Material Aluminum, Copper
Current 150 A
Number of Ports 2
Color Clear

Description

Insulated Multitap Connector, Body Material Aluminum, Color Clear, Finish Unplated, For Conductor Material Aluminum, Copper, For Stranded Copper Wire Size - Minimum 14 AWG, For Stranded Copper Wire Size - Maximum 1/0 AWG, Head Style Hex, Hex Size 3/16 in, Insulation Material Plastisol, Maximum Operating Temperature 194 Degrees F, Maximum Voltage 600 V, Mounting Hole Size Not Applicable, Number of Ports 2, RoHS Compliant Yes, Standards CSA Approved, UL 486A, UL 486B, UL Listed
