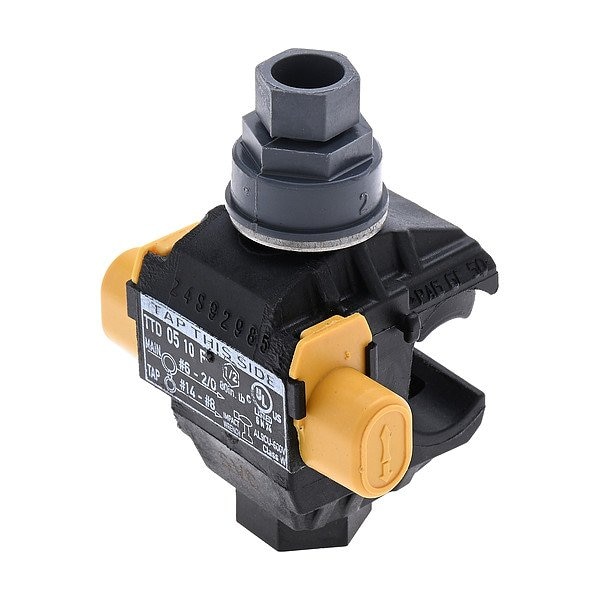

InsulationDisplacementConnector, RunTap

  • Mfr # IPCS2001

  • Zoro # G716286849

product price:  $15.45
/ea

Key Features

Connector Type
Run Tap
For Wire Size
2/0 AWG - 4 AWG
For Conductor Material
Copper, Aluminum
Color
Black
Maximum Operating Temperature
194 Degrees F
See all product information
Get a 10% off coupon
Free 30-day returns Return Policy
Get 30 days to pay with Net 30 Apply Now
Unlock tax-exempt savings Add Tax Exemption

Specifications

Product Information

MFR #
IPCS2001
Zoro #
G716286849
UPC #
662381082602
Country of Origin
United States

Dimensions

For Wire Size
2/0 AWG - 4 AWG
Minimum Tap Wire Size
4 AWG
Maximum Tap Wire Size
2/0 AWG
Maximum Run Wire Size
2/0 AWG
Minimum Run Wire Size
4 AWG

Details

Item
Insulation Displacement Connector
Connector Type
Run Tap
For Conductor Material
Copper, Aluminum
Color
Black
Maximum Operating Temperature
194 Degrees F
Standards
ANSI C119.4, UL 486B
Includes
Connector, Installation Guide
Application
Moisture Resistant
Fill Material
No Fill
Special Features
Exclusive Turbo Spacer Keeps Tap Side Open While Main Conductor is Being Tightened, No Need to Strip Wire and Totally Insulated
Maximum Voltage
600 V
Maximum Run Conductors
1
Maximum Tap Conductors
1
Wire Type
Electrical
Compatible with Product Type
Service Equipment
Resistance Properties
Corrosion-Resistant, Watertight

Description

Insulation Displacement Connector, Color Black, Connector Type Run Tap, Insulation Material Not Applicable, Maximum Insulation Diameter Not Applicable, Maximum Operating Temperature 194 Degrees F, Maximum Run Conductors 1, Maximum Run Wire Insulation Diameter Not Applicable, Minimum Run Wire Size 4 AWG, Maximum Run Wire Size 2/0 AWG, Maximum Tap Conductors 1, Maximum Tap Wire Insulation Diameter Not Applicable, Minimum Tap Wire Size 4 AWG, Maximum Tap Wire Size 2/0 AWG, Maximum Voltage 600 V
