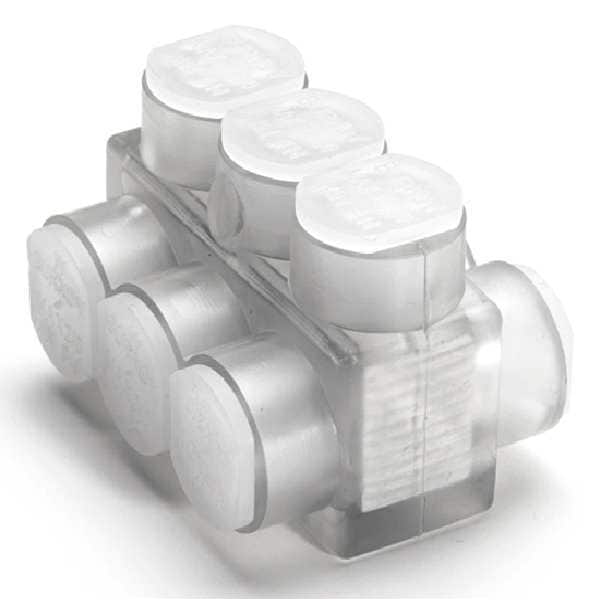

Insulated Multitap Connector, 2.97 In. L

  • Mfr # BIBD2503

  • Zoro # G4675745


product price: $43.45
/ea

Key Features

Connector Type
Double-Sided Entry
For Wire Size
250 kcmil
Number of Ports
3
For Conductor Material
Aluminum, Copper
Body Material
Aluminum
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
BIBD2503
Zoro #
G4675745
UPC #
781810554951
Country of Origin
United States

Dimensions

For Wire Size
250 kcmil
Hex Size
5/16 in
Width
2.64 in
Min. Conductor Size
10 AWG
Length
2.97 in
Stud Size
3/8 in
Max. Conductor Size
250 kcmil
Length (Straight Wireway)
2.97 in
For Stranded Copper Wire Size - Minimum
10 AWG
Overall Length
2.97 in
Overall Width
2.64 in
For Stranded Copper Wire Size - Maximum
250 kcmil
Conductor Size
10 AWG-250 KCMIL
Conductor - AL Str Size
8 AWG;6 AWG;4 AWG;3 AWG;2 AWG;1 AWG;1/0 AWG;2/0 AWG;3/0 AWG;4/0 AWG;250 kcmil
Conductor - AL Str Size Range
8 AWG-250 kcmil
Dimension - Height inch
2.13 in
Dimension - Height fraction
2.125 in
Conductor - Copper Str Size
10 AWG;9 AWG;8 AWG;7 AWG;6 AWG;5 AWG;4 AWG;3 AWG;2 AWG;1 AWG;1/0 ;2/0 AWG;3/0 AWG;4/0 AWG;250 kcmil
Dimension - Width fraction
2-16/25 in
Dimension - Width inch
2.64 in
Dimension - Length Overall inch
2.97 in
Dimension - L Length Overall mm
75 mm
Dimension - Width mm
67 mm
Conductor - Copper Str Size Range
10 AWG-250 kcmil

Description

Multitap Connector, Body Material Aluminum, Color Clear, Finish Unplated, For Conductor Material Aluminum, Copper, For Stranded Copper Wire Size - Minimum 10 AWG, For Stranded Copper Wire Size - Maximum 250 kcmil, Head Style Hex, Hex Size 5/16 in, Insulation Material Plastisol, Maximum Temperature 194 Degrees F, Maximum Voltage 600 V, Mounting Hole Size Not Applicable, Number of Ports 3, UL 94 Flammability Rating V-0, RoHS Compliant Yes, Standards CSA Approved, UL 486A, UL 486B, UL Listed
