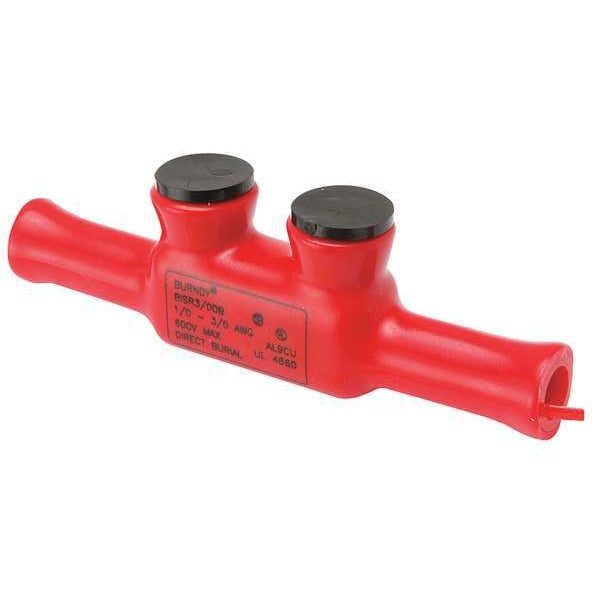

Insulated Multitap Connector, 6.25 In. L
Mfr # BISR3/0DB
Zoro # G4695975
product price: $67.75
/eaKey Features
Connector Type
Double-Sided Entry
For Wire Size
3/0 AWG
Number of Ports
2
For Conductor Material
Aluminum, Copper
Body Material
Aluminum
Get a 10% off coupon
Free 30-day returns
Return PolicyGet 30 days to pay with Net 30
Apply NowReal support from real people
Contact our U.S. based teamSpecifications
Product Information
MFR #
BISR3/0DB
Zoro #
G4695975
UPC #
781810555330
Country of Origin
United States
Dimensions
For Wire Size
3/0 AWG
Hex Size
3/16 in
Min. Conductor Size
1/0
Max. Conductor Size
3/0 AWG
Stud Size
3/16 in
Length
6.25 in
Width
2.0 in
Length (Straight Wireway)
6.25 in
Overall Width
0.99 in
For Stranded Copper Wire Size - Minimum
1/0 AWG
For Stranded Copper Wire Size - Maximum
3/0 AWG
Overall Length
6.25 in
Strip Length
7/8 in
Conductor Size
1/0-3/0 AWG
Conductor - Copper Str Size
1/0 ;2/0 AWG;3/0 AWG
Dimension - Width mm
25.15 mm
Dimension - Length Overall inch
6.25 in
Conductor - Copper Str Size Range
1/0 - 3/0 Str
Dimension - Width fraction
99/100 in
Dimension - Height fraction
2 in
Dimension - Screw Size inch
45123
Conductor - AL Str Size Range
1/0 - 3/0 Str
Dimension - Width inch
0.99 in
Dimension - Height inch
1.96 in
Conductor - AL Str Size
1/0;2/0 AWG;3/0 AWG
Dimension - L Length Overall mm
158.75 mm
Dimension - Strip Length inch
7/8 in
Description
Multitap Connector, Body Material Aluminum, Color Red, Finish Unplated, For Conductor Material Aluminum, Copper, For Stranded Copper Wire Size - Minimum 1/0 AWG, For Stranded Copper Wire Size - Maximum 3/0 AWG, Head Style Hex, Hex Size 3/16 in, Insulation Material Plastisol, Maximum Operating Temperature 194 Degrees F, Maximum Voltage 600 V, Mounting Hole Size Not Applicable, Number of Ports 2, UL 94 Flammability Rating V-0, RoHS Compliant Yes, Standards UL 486A, UL 486B, UL Listed
