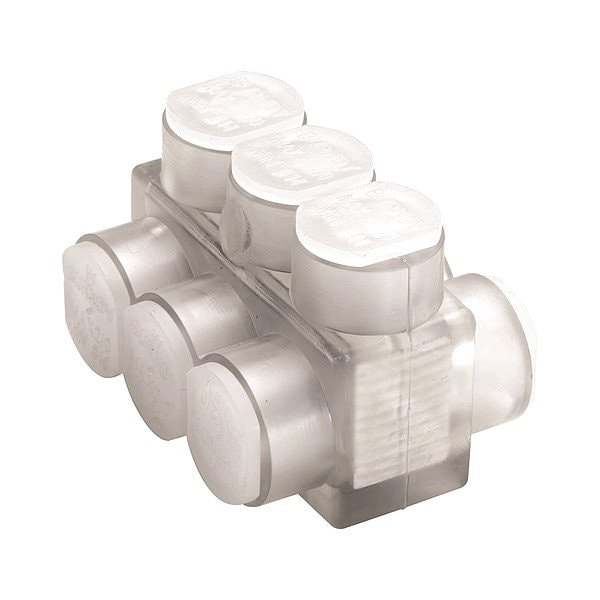

MultitapConnector, Alum, Clear, Hex, 2Port
- Mfr # BIBD3502
- Zoro # G716437500
product price:Â
$
70.39
/ea
Key Features
For Wire Size
10 AWG - 350 kcmil
Number of Ports
2
For Conductor Material
Aluminum, Copper
Body Material
Aluminum
Insulation Material
Plastisol
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval.
Terms apply.
Get 10% off your order
Sign up for our email list and receive your promo code via email.
Specifications
Product Information
- MFR #
- BIBD3502
- Zoro #
- G716437500
- UPC #
- -
- Country of Origin
- United States
Dimensions
- For Wire Size
- 10 AWG - 350 kcmil
- Hex Size
- 5/16 in
- Wire Rope Length
- 2.22 in
- For Stranded Copper Wire Size - Minimum
- 10 AWG
- Overall Depth
- 2 1/2 in
- For Stranded Copper Wire Size - Maximum
- 350 kcmil
- Overall Width
- 3 in
- Overall Length
- 2.22 in
- Length
- 2.22 in
Description
Multitap Connector, Body Material Aluminum, Color Clear, Finish Unplated, For Conductor Material Aluminum, Copper, For Stranded Copper Wire Size - Minimum 10 AWG, For Stranded Copper Wire Size - Maximum 350 kcmil, Head Style Hex, Hex Size 5/16 in, Insulation Material Plastisol, Maximum Operating Temperature 194 Degrees F, Maximum Voltage 600 V, Number of Ports 2, UL 94 Flammability Rating V-0, Standards ARRA Compliant, CSA, UL, Compatible with Product Type Aluminum Conductor, Copper Conductor
