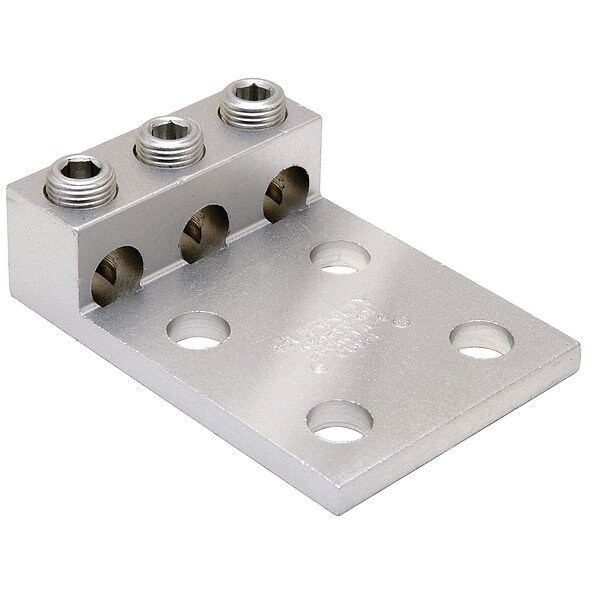

Mechanical Connector, 3 Conductor, 1/2 in Stud, Aluminum
- Mfr # K3A36U4N
- Zoro # G916557695
product price:Â
$
192.99
/ea
Free Shipping & Returns
Key Features
Connector Type
Set Screw
Hole Diameter
0.56 in
Body Material
Aluminum
Contact Finish
Tin Plated
Maximum Operating Temperature
194 Degrees F
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval.
Terms apply.
Get 10% off your order
Sign up for our email list and receive your promo code via email.
Specifications
Product Information
- MFR #
- K3A36U4N
- Zoro #
- G916557695
- UPC #
- 781810601228
- Country of Origin
- United States
Dimensions
- Hole Diameter
- 0.56 in
- For Stranded Copper Wire Size - Minimum
- 2 AWG
- Overall Width
- 3.64 in
- Overall Length
- 4.69 in
- For Stud Size
- 1/2 in
- Overall Depth
- 1 9/16 in
- For Maximum Wire Size
- 600 kcmil
- Tongue Width
- 3.64 in
- Wire Rope Length
- 4.69 in
- For Stranded Copper Wire Size - Maximum
- 600 kcmil
- Length
- 4.69 in
Description
Mechanical Connector, For Conductor Material Aluminum, Copper, For Stranded Copper Wire Size - Minimum 2 AWG, For Stranded Copper Wire Size - Maximum 600 kcmil, For Stud Size 1/2 in, Head Style Slotted, Number of Holes 4, Hole Diameter 0.56 in, Hole Spacing 1.75 in, Body Material Aluminum, Maximum Operating Temperature 194 Degrees F, Number of Conductors 3, Number of Terminations 3, Tongue Width 3.64 in, Connector Type Set Screw, Standards ARRA Compliant, CSA Certified, UL Listed
